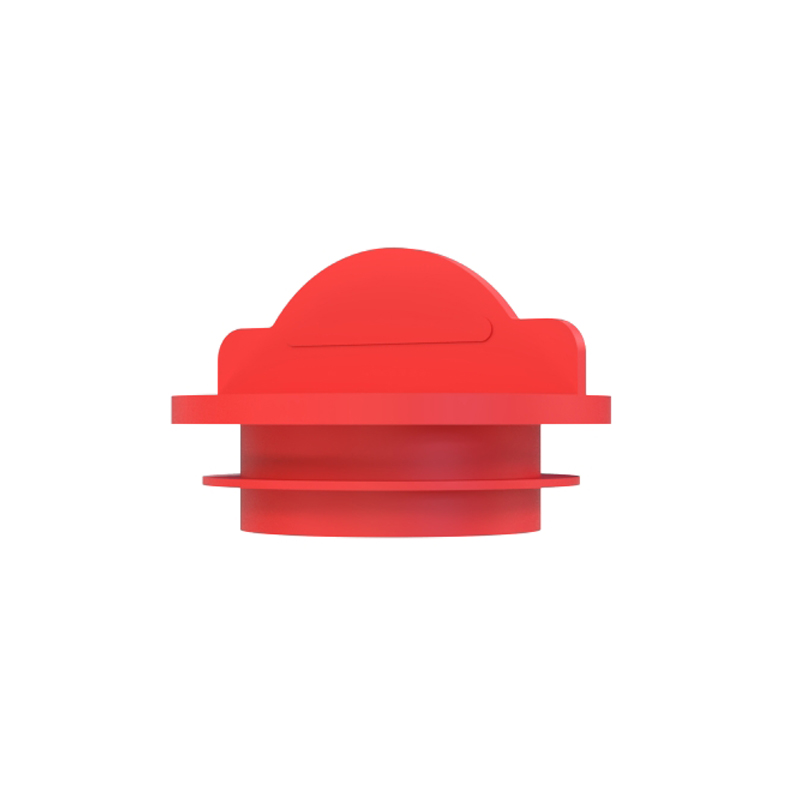

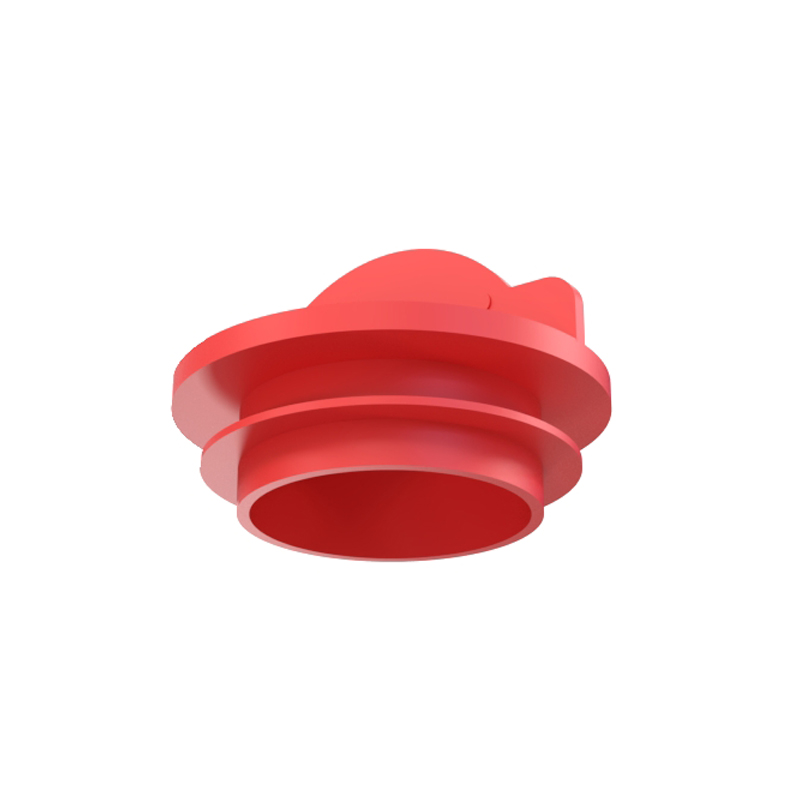

Tappo snap-fit
Codice serie: SF
Materiale:
Polietilene (PE-LD)
Colore: Rosso

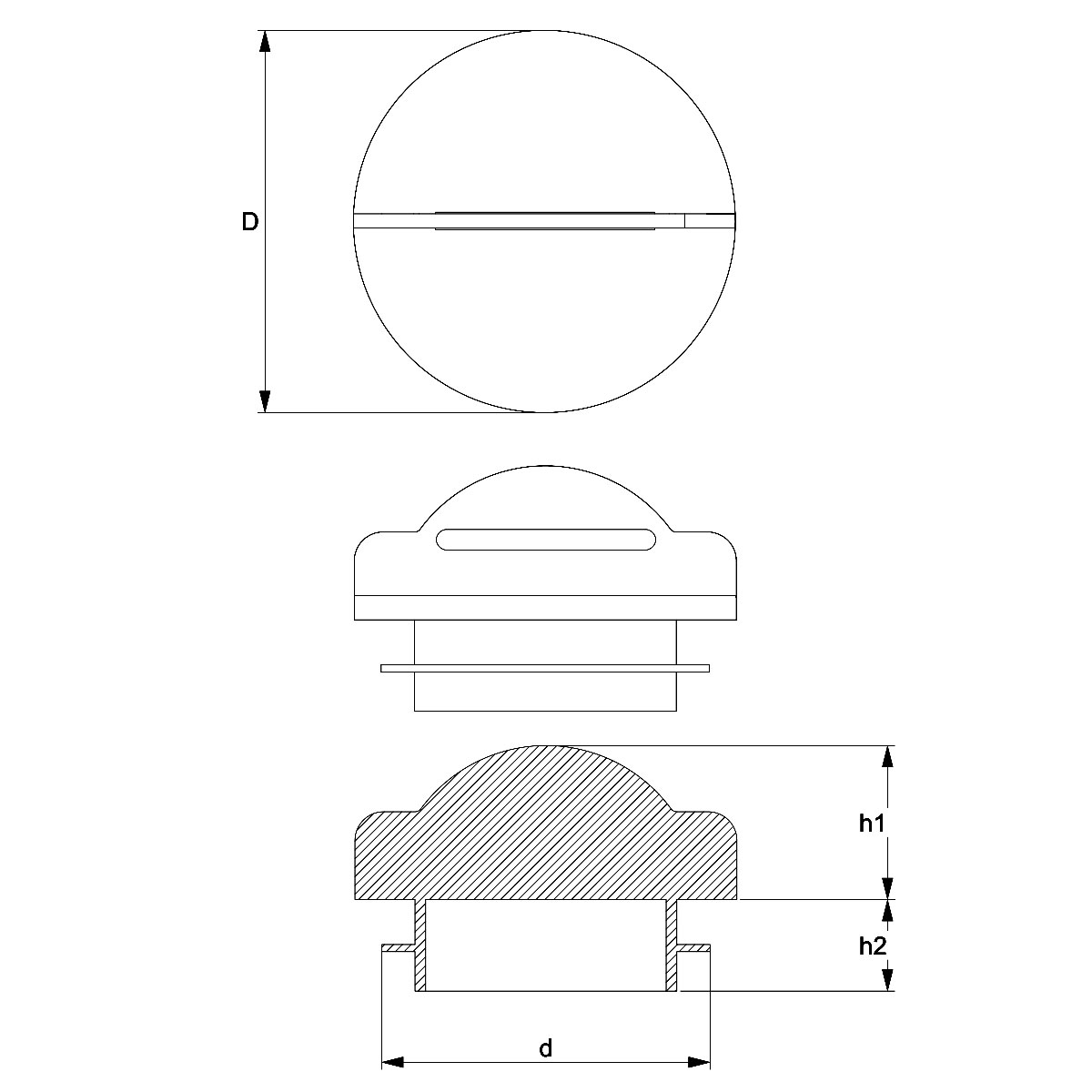

| Serie | Codice | Evidenzia | D | d | h1 | h2 | Filettatura | Metrico | Filettatura | BSP/GAS | Filettatura | UNF/JIC |
|---|---|---|---|---|---|---|---|---|---|
| SF | SF1/8 | 0 | 9.8 | 9.8 | 6.0 | 4.0 | M10 | 1/8" | 7/16" |
| SF | SF1/4 | 0 | 15.8 | 13.1 | 12.0 | 5.0 | M12,M13,M14 | 1/4" | 1/2" |
| SF | SF3/8 | 0 | 19.5 | 16.5 | 14.0 | 5.0 | M16 | 3/8" | 5/8" |
| SF | SFM18 | 0 | 21.5 | 18.3 | 11.5 | 7.0 | M18 | 3/4" | |
| SF | SF1/2 | 0 | 22.7 | 21.3 | 12.0 | 7.0 | M20 | 1/2" | |
| SF | SF5/8 | 0 | 25.8 | 22.4 | 12.0 | 7.0 | M22 | 5/8" | 7/8" |
| SF | SFM24 | 0 | 28.2 | 23.5 | 12.0 | 7.0 | M24 | ||
| SF | SF3/4 | 0 | 29.9 | 25.5 | 12.0 | 7.0 | M25, M26 | 3/4" | 1 1/16" |
| SF | SF7/8 | 0 | 32.7 | 27.9 | 12.0 | 7.0 | M28 | 7/8" | 1 1/8" |
| SF | SF1 | 0 | 35.6 | 32.0 | 12.0 | 7.0 | M32 | 1" | 1 5/16" |
| SF | SF1.1/8 | 0 | 39.7 | 35.7 | 12.0 | 7.0 | M36 | 1 1/8" | 1 1/2", 1 3/8" |
| SF | SF1.1/4 | 0 | 45.4 | 41.5 | 7.0 | 7.0 | M40, M42 | 1 1/4" | 1 5/8" |
