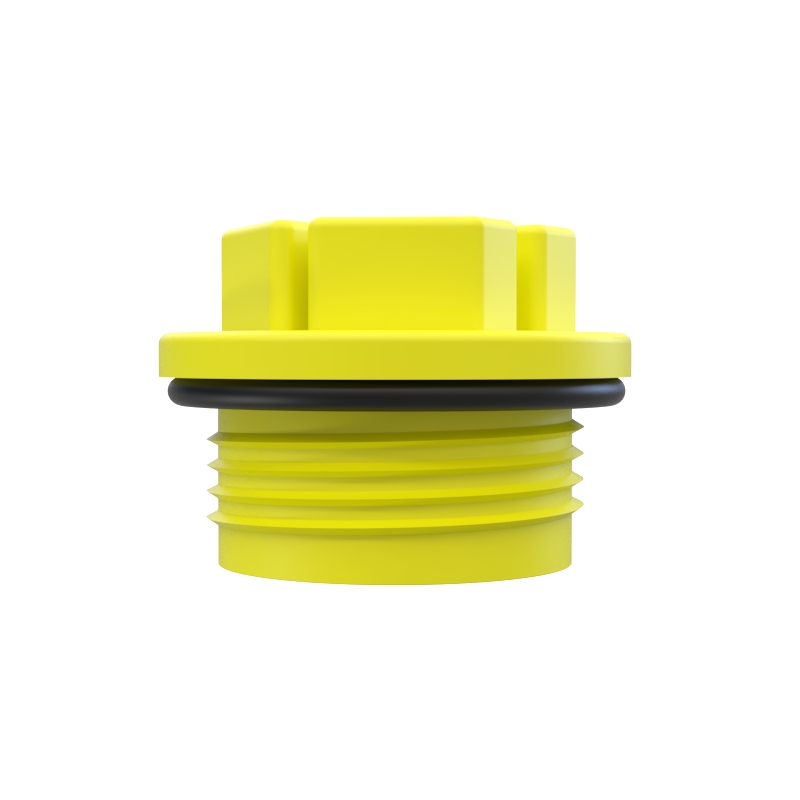

Tappo filettato a tenuta con O-Ring
Codice serie: TFTOR
Materiale:
Polietilene (PE-HD)
Colore: Giallo
- O-Ring assemblato
- A richiesta possiamo modificare il colore standard
| Serie | Codice | Evidenzia | filettature | D | H | h1 | S |
|---|---|---|---|---|---|---|---|
| TFTOR | TFTOR - GAS | 1 | |||||
| TFTOR | TFTOR1/8 | 0 | 1/8" x 28 | 16.0 | 17.2 | 10.0 | 7.0 |
| TFTOR | TFTOR1/4 | 0 | 1/4" x 19 | 19.0 | 19.7 | 12.5 | 10.0 |
| TFTOR | TFTOR3/8 | 0 | 3/8" x 19 | 22.0 | 20.9 | 12.5 | 13.0 |
| TFTOR | TFTOR1/2 | 0 | 1/2" x 14 | 27.0 | 21.9 | 13.5 | 15.0 |
| TFTOR | TFTOR5/8 | 0 | 5/8" x 14 | 29.5 | 21.9 | 13.5 | 17.0 |
| TFTOR | TFTOR3/4 | 0 | 3/4" x 14 | 32.0 | 21.9 | 13.5 | 19.0 |
| TFTOR | TFTOR7/8 | 0 | 7/8" x 14 | 37.0 | 21.9 | 13.5 | 22.0 |
| TFTOR | TFTOR1 | 0 | 1" x 11 | 40.0 | 23.6 | 15.0 | 24.0 |
| TFTOR | TFTOR1.1/4 | 0 | 1,1/4" x 11 | 50.0 | 23.6 | 15.0 | 24.0 |
| TFTOR | TFTOR1.1/2 | 0 | 1,1/2" x 11 | 56.0 | 25.0 | 15.0 | 30.0 |
| TFTOR | TFTOR1.3/4 | 0 | 1,3/4" x 11 | 62.0 | 25.0 | 15.0 | 36.0 |
| TFTOR | TFTOR2 | 0 | 2" x 11 | 68.0 | 25.0 | 15.0 | 36.0 |
| TFTOR | TFTOR - UNF | 1 | |||||
| TFTOR | TFTOR3/8U | 0 | 3/8" x 24 | 14.0 | 17.2 | 10.0 | 7.0 |
| TFTOR | TFTOR7/16U | 0 | 7/16" x 20 | 16.0 | 19.7 | 12.5 | 10.0 |
| TFTOR | TFTOR1/2U | 0 | 1/2" x 20 | 19.0 | 20.9 | 12.5 | 10.0 |
| TFTOR | TFTOR9/16U | 0 | 9/16" x 18 | 20,3 | 20.9 | 12.5 | 10.0 |
| TFTOR | TFTOR5/8U | 0 | 5/8" x 18 | 22.0 | 20.9 | 12.5 | 13.0 |
| TFTOR | TFTOR3/4U | 0 | 3/4" x 16 | 27.0 | 21.9 | 13.5 | 13.0 |
| TFTOR | TFTOR7/8U | 0 | 7/8" x 14 | 28.0 | 21.9 | 13.5 | 15.0 |
| TFTOR | TFTOR1U | 0 | 1" x 14 | 31.0 | 22.1 | 13.5 | 17.0 |
| TFTOR | TFTOR1.1/16U | 0 | 1,1/16" x 12 | 35.0 | 22.6 | 14.0 | 19.0 |
| TFTOR | TFTOR1.3/16U | 0 | 1,3/16" x 12 | 38.0 | 22.6 | 14.0 | 22.0 |
| TFTOR | TFTOR1.5/16U | 0 | 1,5/16" x 12 | 42.0 | 24.0 | 14.0 | 24.0 |
| TFTOR | TFTOR1.5/8U | 0 | 1,5/8" x 12 | 50.0 | 24.0 | 14.0 | 24.0 |
| TFTOR | TFTOR 1.7/8U | 0 | 1,7/8" x 12 | 55.0 | 24.0 | 14.0 | 30.0 |
| TFTOR | TFTOR - Metrico | 1 | |||||
| TFTOR | TFTORM8x1 | 0 | M8 x 1 | 12.5 | 17.0 | 10.0 | 6.0 |
| TFTOR | TFTORM10x1 | 0 | M10 x 1 | 16.0 | 17.2 | 10.0 | 7.0 |
| TFTOR | TFTORM12x1 | 0 | M12 x 1 | 17.0 | 17.2 | 10.0 | 10.0 |
| TFTOR | TFTORM10x1.5 | 0 | M10 x 1.5 | 16.0 | 17.2 | 10.0 | 7.0 |
| TFTOR | TFTORM12x1.5 | 0 | M12 x 1.5 | 17.0 | 19.2 | 12.0 | 10.0 |
| TFTOR | TFTORM14x1.5 | 0 | M14 x 1.5 | 19.0 | 19.2 | 12.0 | 10.0 |
| TFTOR | TFTORM16x1.5 | 0 | M16 x 1.5 | 22.0 | 20.4 | 12.0 | 13.0 |
| TFTOR | TFTORM18x1.5 | 0 | M18 x 1.5 | 24.0 | 20.4 | 12.0 | 13.0 |
| TFTOR | TFTORM20x1.5 | 0 | M20 x 1.5 | 26.0 | 20.4 | 12.0 | 15.0 |
| TFTOR | TFTORM22x1.5 | 0 | M22 x 1.5 | 28.0 | 20.4 | 12.0 | 15.0 |
| TFTOR | TFTORM24x1.5 | 0 | M24 x 1.5 | 30.0 | 20.4 | 12.0 | 17.0 |
| TFTOR | TFTORM26x1.5 | 0 | M26 x 1.5 | 32.0 | 20.4 | 12.0 | 19.0 |
| TFTOR | TFTORM28x1.5 | 0 | M28 x 1.5 | 34.0 | 20.4 | 12.0 | 19.0 |
| TFTOR | TFTORM30x1.5 | 0 | M30 x 1.5 | 38.0 | 20.6 | 12.0 | 22.0 |
| TFTOR | TFTORM32x1.5 | 0 | M32 x 1.5 | 40.0 | 20.6 | 12.0 | 24.0 |
| TFTOR | TFTORM36x1.5 | 0 | M36 x 1.5 | 45.0 | 20.6 | 12.0 | 24.0 |
| TFTOR | TFTORM38x1.5 | 0 | M38 x 1.5 | 48.0 | 20.6 | 12.0 | 24.0 |
| TFTOR | TFTORM52x1.5 | 0 | M52 x 1.5 | 60.0 | 22.0 | 12.0 | 30.0 |
| TFTOR | TFTORM27x2 | 0 | M27 x 2.0 | 33.0 | 24.6 | 15.0 | 19.0 |
| TFTOR | TFTORM30x2 | 0 | M30 x 2.0 | 38.0 | 24.6 | 15.0 | 22.0 |
| TFTOR | TFTORM33x2 | 0 | M33 x 2.0 | 40.0 | 24.6 | 15.0 | 24.0 |
| TFTOR | TFTORM36x2 | 0 | M36 x 2.0 | 45.0 | 24.6 | 15.0 | 24.0 |
| TFTOR | TFTORM42x2 | 0 | M42 x 2.0 | 50.0 | 24.6 | 15.0 | 24.0 |
| TFTOR | TFTORM45x2 | 0 | M45 x 2.0 | 52.0 | 25.0 | 15.0 | 30.0 |
| TFTOR | TFTORM48x2 | 0 | M48 x 2.0 | 55.0 | 25.0 | 15.0 | 30.0 |
| TFTOR | TFTORM52x2 | 0 | M52 x 2.0 | 60.0 | 25.0 | 15.0 | 7.0 |
