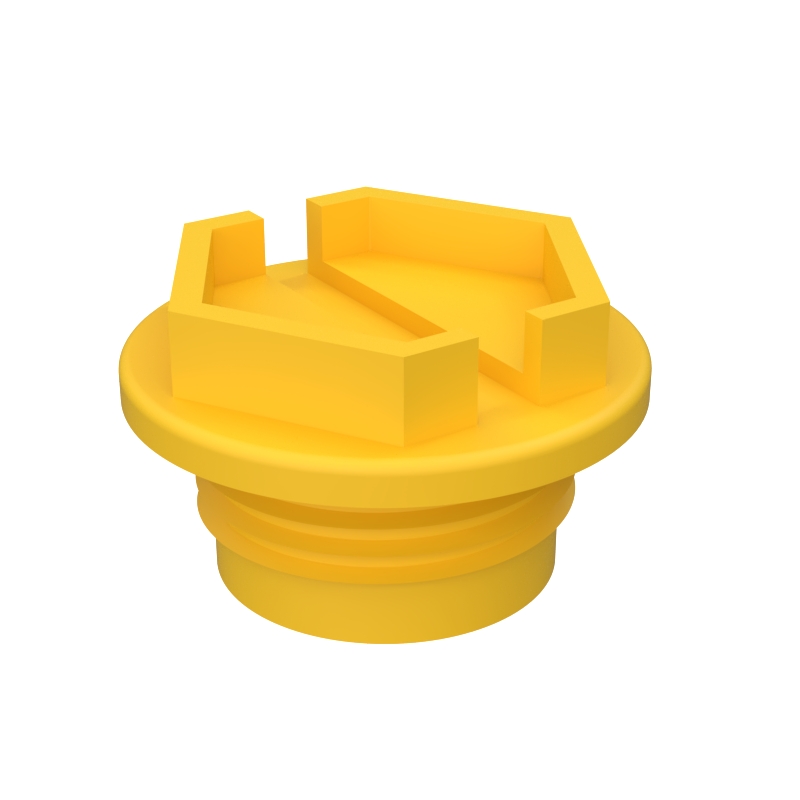

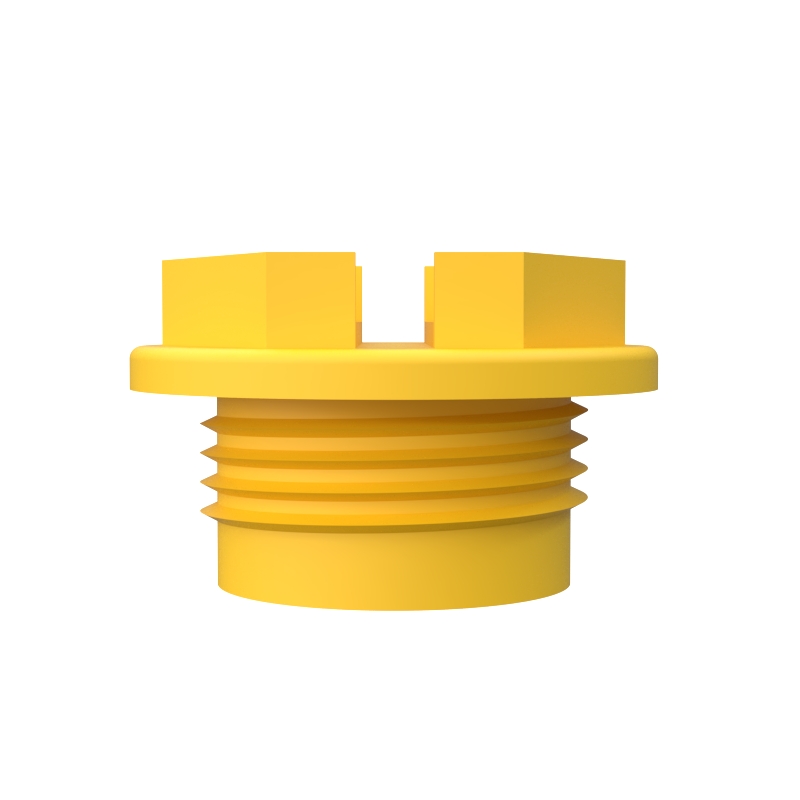

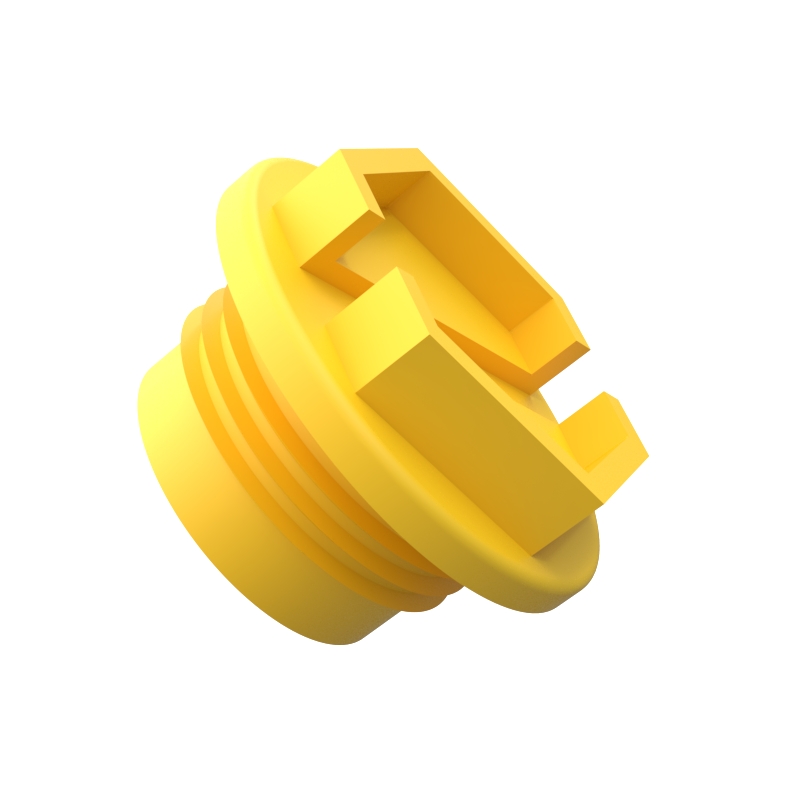

Tappo filettato a tenuta
Codice serie: TFT
Materiale:
Nylon PA6
Colore: Giallo
| Serie | Codice | Evidenzia | filettatura | D | H | h | SW1 | SW2 |
|---|---|---|---|---|---|---|---|---|
| TFT | TFT - METRICO | 1 | ||||||
| TFT | TFT8x1 | 0 | M8 x 1 | 12.5 | 15.5 | 8.0 | 7 | 4 |
| TFT | TFT10x1 | 0 | M10 x 1 | 14.5 | 16.5 | 9.0 | 9 | 6 |
| TFT | TFT10x1.5 | 0 | M10 x 1.5 | 14.5 | 16.5 | 9.0 | 9 | 6 |
| TFT | TFT12x1 | 0 | M12 x 1 | 17.0 | 16.5 | 9.0 | 10 | 7 |
| TFT | TFT12x1.5 | 0 | M12 x 1.5 | 17.0 | 16.5 | 9.0 | 10 | 7 |
| TFT | TFT14x1.5 | 0 | M14 x 1.5 | 19.0 | 17.5 | 10.0 | 13 | 10 |
| TFT | TFT16x1.5 | 0 | M16 x 1.5 | 22.0 | 17.5 | 10.0 | 15 | 12 |
| TFT | TFT18x1.5 | 0 | M18 x 1.5 | 24.0 | 17.5 | 10.0 | 17 | 14 |
| TFT | TFT20x1.5 | 0 | M20 x 1.5 | 26.0 | 17.5 | 10.0 | 19 | 16 |
| TFT | TFT22x1.5 | 0 | M22 x 1.5 | 28.0 | 17.5 | 10.0 | 21 | 18 |
| TFT | TFT24x1.5 | 0 | M24 x 1.5 | 30.0 | 17.5 | 10.0 | 24 | 21 |
| TFT | TFT26x1.5 | 0 | M26 x 1.5 | 32.0 | 20.5 | 12.0 | 24 | 21 |
| TFT | TFT27x1.5 | 0 | M27 x 1.5 | 33.0 | 20.5 | 12.0 | 24 | 21 |
| TFT | TFT28x1.5 | 0 | M28 x 1.5 | 34.0 | 20.5 | 12.0 | 24 | 21 |
| TFT | TFT30x1.5 | 0 | M30 x 1.5 | 38.0 | 20.5 | 12.0 | 24 | 21 |
| TFT | TFT32x1.5 | 0 | M32 x 1.5 | 40.0 | 20.5 | 12.0 | 24 | 21 |
| TFT | TFT36x1.5 | 0 | M36 x 1.5 | 45.0 | 20.5 | 12.0 | 24 | 21 |
| TFT | TFT38x1.5 | 0 | M38 x 1.5 | 48.0 | 20.5 | 12.0 | 24 | 21 |
| TFT | TFT45x1.5 | 0 | M45 x 1.5 | 52.0 | 21.5 | 12.0 | 30 | 27 |
| TFT | TFT52x1.5 | 0 | M52 x 1.5 | 60.0 | 22.0 | 12.0 | 30 | 27 |
| TFT | TFT27x2 | 0 | M27 x 2 | 33.0 | 22.0 | 13.5 | 24 | 21 |
| TFT | TFT30x2 | 0 | M30 x 2 | 38.0 | 22.0 | 13.5 | 24 | 21 |
| TFT | TFT33x2 | 0 | M33 x 2 | 40.0 | 22.0 | 13.5 | 24 | 21 |
| TFT | TFT36x2 | 0 | M36 x 2 | 45.0 | 22.0 | 13.5 | 24 | 21 |
| TFT | TFT42x2 | 0 | M42 x 2 | 50.0 | 22.0 | 13.5 | 30 | 27 |
| TFT | TFT48x2 | 0 | M48 x 2 | 55.0 | 23.0 | 13.5 | 30 | 27 |
| TFT | TFT52x2 | 0 | M52 x 2 | 60.0 | 23.0 | 13.5 | 30 | 27 |
| TFT | TFT - GAS | 1 | ||||||
| TFT | TFT1/8 | 0 | 1/8" x 28 | 16.0 | 15.5 | 8.0 | 12 | 9 |
| TFT | TFT1/4 | 0 | 1/4" x 19 | 19.0 | 17.5 | 10.0 | 13 | 10 |
| TFT | TFT3/8 | 0 | 3/8" x 19 | 22.0 | 17.5 | 10.0 | 15 | 12 |
| TFT | TFT1/2 | 0 | 1/2" x 14 | 27.0 | 19.5 | 12.0 | 19 | 16 |
| TFT | TFT5/8 | 0 | 5/8" x 14 | 29.5 | 19.5 | 12.0 | 22 | 19 |
| TFT | TFT3/4 | 0 | 3/4" x 14 | 32.0 | 19.5 | 12.0 | 24 | 21 |
| TFT | TFT7/8 | 0 | 7/8" x 14 | 37.0 | 19.5 | 12.0 | 27 | 24 |
| TFT | TFT1 | 0 | 1" x 11 | 40.0 | 22.5 | 15.0 | 30 | 27 |
| TFT | TFT1.1/4 | 0 | 1,1/4" x 11 | 50.0 | 22.5 | 15.0 | 36 | 33 |
| TFT | TFT1.1/2 | 0 | 1,1/2" x 11 | 56.0 | 24.0 | 15.0 | 41 | 37 |
| TFT | TFT1.3/4 | 0 | 1,3/4" x 11 | 62.0 | 24.0 | 15.0 | 50 | 46 |
| TFT | TFT2 | 0 | 2" x 11 | 68.0 | 24.0 | 15.0 | 55 | 51 |
| TFT | TFT - UNF | 1 | ||||||
| TFT | TFT3/8U | 0 | 3/8" x 24 | 16.0 | 17.5 | 10.0 | 9.0 | 6.0 |
| TFT | TFT7/16U | 0 | 7/16" x 20 | 17.0 | 17.5 | 10.0 | 10.0 | 7.0 |
| TFT | TFT1/2U | 0 | 1/2" x 20 | 19.0 | 17.5 | 10.0 | 13.0 | 10.0 |
| TFT | TFT9/16U | 0 | 9/16" x 18 | 20.5 | 17.5 | 10.0 | 13.0 | 10.0 |
| TFT | TFT5/8U | 0 | 5/8" x 18 | 22.0 | 17.5 | 10.0 | 15.0 | 12.0 |
| TFT | TFT3/4U | 0 | 3/4" x 16 | 26.0 | 17.5 | 10.0 | 19.0 | 16.0 |
| TFT | TFT7/8U | 0 | 7/8" x 14 | 28.5 | 19.5 | 12.0 | 21.0 | 18.0 |
| TFT | TFT1U | 0 | 1" x 14 | 31.5 | 19.5 | 12.0 | 24.0 | 21.0 |
| TFT | TFT1.1/16U | 0 | 1,1/16" x 12 | 33.0 | 19.5 | 12.0 | 24.0 | 21.0 |
| TFT | TFT1.3/16U | 0 | 1,3/16" x 12 | 36.5 | 22.5 | 15.0 | 30.0 | 27.0 |
| TFT | TFT1.5/16U | 0 | 1,5/16" x 12 | 40.0 | 22.5 | 15.0 | 30.0 | 27.0 |
| TFT | TFT1.5/8U | 0 | 1,5/8" x 12 | 47.5 | 22.5 | 15.0 | 36.0 | 33.0 |
| TFT | TFT1.7/8U | 0 | 1,7/8" x 12 | 54.0 | 22.5 | 15.0 | 36.0 | 33.0 |
