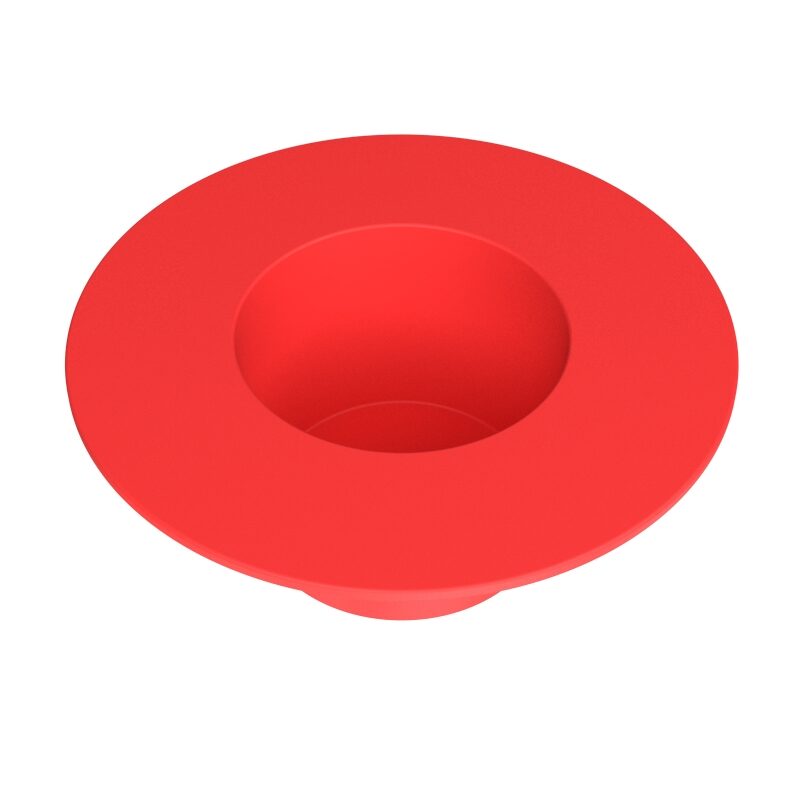

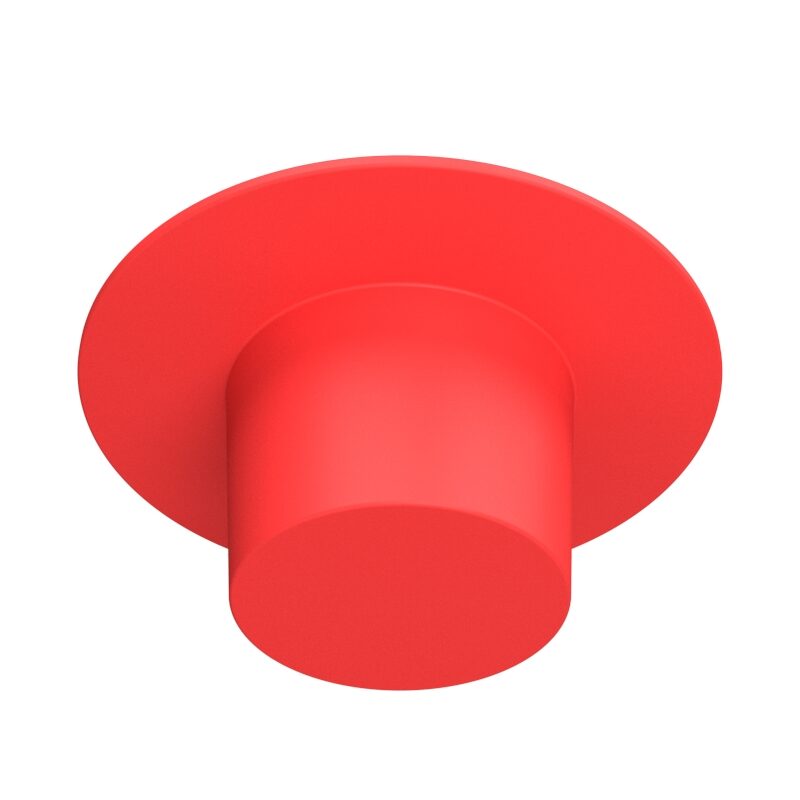

Sottotappo conico a flangia larga
Codice serie: STCFL
Materiale:
Polietilene (PE-LD)
Colore: Rosso
A richiesta possiamo modificare il colore standard
| Serie | Codice | Evidenzia | d1 | d2 | h | D | Inserito in un filetto femmina | Inserito in un filetto maschio |
|---|---|---|---|---|---|---|---|---|
| STCFL | STCFL7.6 | 0 | 7.6 | 9.3 | 9.5 | 18.4 | - | - |
| STCFL | STCFL10.7 | 0 | 10.7 | 12.3 | 9.5 | 22 | 1/2'' UNF, 1/4'' GAS | 1/8'' GAS |
| STCFL | STCFL11.3 | 0 | 11.3 | 13.2 | 11 | 29 | - | - |
| STCFL | STCFL11.4 | 0 | 11.4 | 12.4 | 7 | 15 | - | - |
| STCFL | STCFL13.5 | 0 | 13.5 | 15.5 | 9.5 | 30 | - | - |
| STCFL | STCFL13.6 | 0 | 13.6 | 15.4 | 11.1 | 22.2 | 5/8'' UNF, M16 | 1/4'' GAS, 1/2'' UNF |
| STCFL | STCFL14.7 | 0 | 14.7 | 16.9 | 12.7 | 25.4 | M18 | - |
| STCFL | STCFL17.5 | 0 | 17.5 | 20 | 14.3 | 34.9 | 1/2'' GAS | M18 |
| STCFL | STCFL19.1 | 0 | 19.1 | 21.5 | 14.3 | 38.1 | - | - |
| STCFL | STCFL21.9 | 0 | 21.9 | 25 | 17.5 | 48 | - | - |
| STCFL | STCFL22.5 | 0 | 22.5 | 25.3 | 17.3 | 55.4 | - | - |
| STCFL | STCFL24.7 | 0 | 24.7 | 27.7 | 19.1 | 38.1 | M27, M30 | - |
| STCFL | STCFL30.4 | 0 | 30.4 | 33.6 | 15.2 | 47.3 | 1'' GAS, M33, M32 | M30 |
| STCFL | STCFL31.1 | 0 | 31.1 | 34.4 | 19.1 | 47.6 | M35 | M33, M32, 1/4'' UNF |
| STCFL | STCFL33.3 | 0 | 33.3 | 37.2 | 22.2 | 50.8 | 1.1/8'' GAS, 1.1/2'' UNF | M35, 1'' GAS |
| STCFL | STCFL36.9 | 0 | 36.9 | 40.6 | 22.5 | 54.2 | 1.1/4'' GAS | 1.1/8'' GAS, M38 |
| STCFL | STCFL41.4 | 0 | 41.4 | 44.8 | 19 | 57.2 | M45 | 1.1/4'' GAS, M42 |
| STCFL | STCFL47.2 | 0 | 47.2 | 51.9 | 24 | 72 | - | - |
| STCFL | STCFL48.3 | 0 | 48.3 | 52.7 | 25.4 | 63.5 | M52 | 1.3/4 GAS |
| STCFL | STCFL51.5 | 0 | 51.5 | 54.1 | 18.5 | 66.7 | - | - |
| STCFL | STCFL55 | 0 | 55 | 61 | 25 | 76.7 | - | - |
| STCFL | STCFL62 | 0 | 62 | 66.4 | 28 | 83 | - | - |
