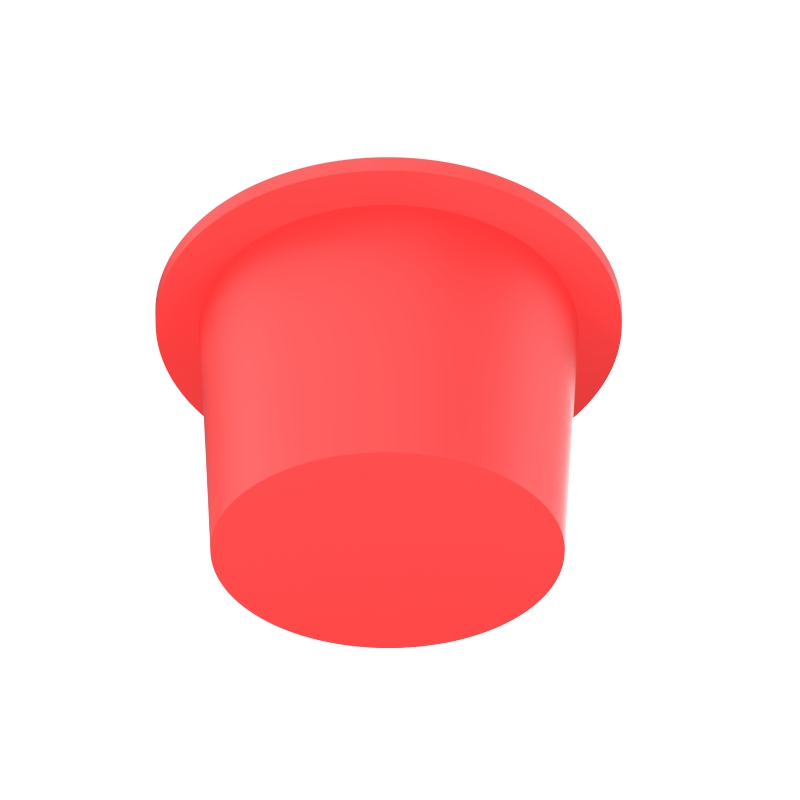

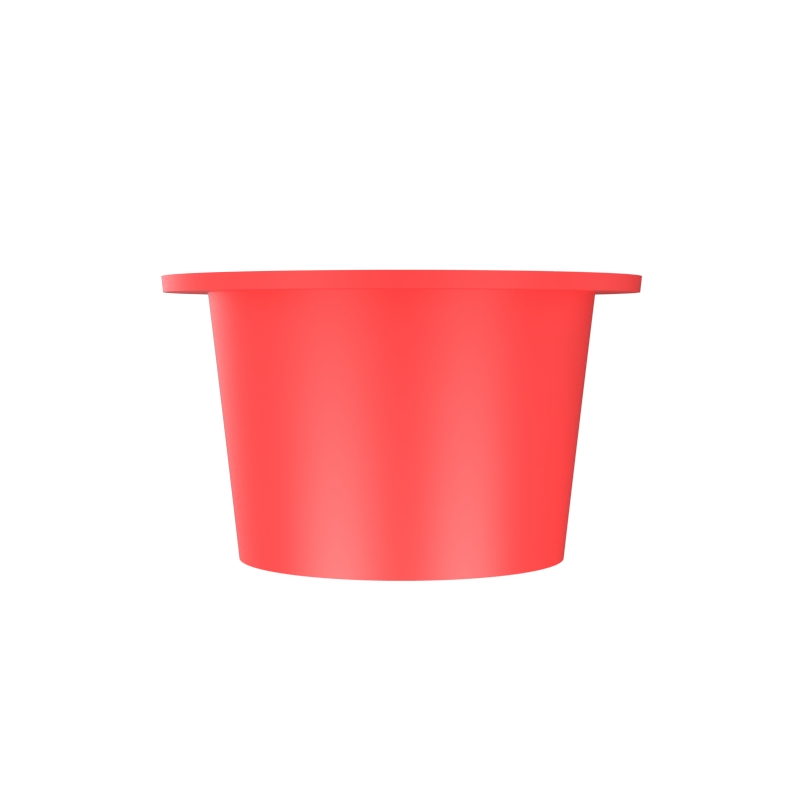

Sottotappo conico
Codice serie: STC
Materiale:
Polietilene (PE-LD)
Colore: Rosso
A richiesta possiamo modificare il colore standard.
| Serie | Codice | Evidenzia | d1 | d2 | h | D | Inserito in un filetto femmina | Inserito in un filetto maschio |
|---|---|---|---|---|---|---|---|---|
| STC | STC2.9 | 0 | 2.9 | 4.6 | 9.5 | 7.9 | - | - |
| STC | STC4.4 | 0 | 4.4 | 6.1 | 9.5 | 9.5 | M6, 1/4'' UNF | M4 |
| STC | STC4.7 | 0 | 4.7 | 8.5 | 22.5 | 11.7 | - | - |
| STC | STC5.6 | 0 | 5.6 | 7.0 | 8.4 | 10.5 | - | - |
| STC | STC6.2 | 0 | 6.2 | 7.6 | 9.5 | 11.1 | M8, 5/16'' UNF | M5/M6 |
| STC | STC7.7 | 0 | 7.7 | 9.3 | 8.0 | 12.7 | - | 1/4'' UNF |
| STC | STC7.7B | 0 | 7.7 | 9.1 | 9.5 | 12.7 | 3/8'' UNF | - |
| STC | STC8.4 | 0 | 8.4 | 10.0 | 9.5 | 13.5 | M10, 1/8'' GAS, 7/16'' UNF | M8, 5/6'' UNF |
| STC | STC8.6 | 0 | 8.6 | 10.3 | 9.8 | 13.7 | - | - |
| STC | STC9 | 0 | 9.0 | 10.7 | 11.5 | 13.9 | - | - |
| STC | STC9.4 | 0 | 9.4 | 10.8 | 8.5 | 14.0 | - | - |
| STC | STC10 | 0 | 10.0 | 11.8 | 9.5 | 15.0 | M12 | M10, 3/8'' UNF |
| STC | STC10.6 | 0 | 10.6 | 12.2 | 9.8 | 15.6 | - | - |
| STC | STC10.9 | 0 | 10.9 | 12.3 | 9.3 | 15.9 | 1/4'' GAS, 1/2'' UNF | 1/8'' GAS |
| STC | STC11.2 | 0 | 11.2 | 14.0 | 18.5 | 17.5 | - | - |
| STC | STC11.3 | 0 | 11.3 | 12.9 | 8.5 | 16.3 | - | - |
| STC | STC11,3B | 0 | 11.3 | 13.2 | 11.0 | 17.0 | - | - |
| STC | STC11.5 | 0 | 11.5 | 13.0 | 9.5 | 16.7 | M14 | - |
| STC | STC12 | 0 | 12.0 | 14.8 | 11.0 | 17.5 | - | - |
| STC | STC12.1 | 0 | 12.1 | 13.9 | 11.0 | 17.5 | 9/16'' UNF | M12 |
| STC | STC12.5 | 0 | 12.5 | 14.0 | 8.9 | 17.5 | - | 7/16'' UNF |
| STC | STC12.8 | 0 | 12.8 | 15.1 | 23.1 | 18.5 | - | - |
| STC | STC13.6 | 0 | 13.6 | 15.3 | 11.2 | 19.0 | M16, 5/8'' UNF | 1/4'' GAS, 1/2'' UNF |
| STC | STC14.2 | 0 | 14.2 | 16.0 | 12.1 | 19.0 | 3/8'' GAS | M14, 9/16'' UNF |
| STC | STC14.7 | 0 | 14.7 | 17.0 | 12.7 | 20.6 | M18 | - |
| STC | STC14.9 | 0 | 14.9 | 16.4 | 11.5 | 21.0 | - | - |
| STC | STC15.5 | 0 | 15.5 | 17.1 | 8.5 | 20.6 | - | - |
| STC | STC16.1 | 0 | 16.1 | 17.6 | 8.5 | 21.0 | - | - |
| STC | STC16.4 | 0 | 16.4 | 18.3 | 12.3 | 22.2 | M20, 3/4'' UNF | M16, 5/8'' UNF |
| STC | STC16.6 | 0 | 16.6 | 18.5 | 13.0 | 21.9 | - | - |
| STC | STC17.1 | 0 | 17.1 | 19.4 | 13.0 | 22.0 | M20 x 1.5 | 3/8'' GAS |
| STC | STC17.2 | 0 | 17.2 | 20.2 | 18.0 | 24.2 | - | - |
| STC | STC17.5 | 0 | 17.5 | 20.1 | 14.5 | 24.0 | 1/2'' GAS | M18 x 1.5, M18 x 2 |
| STC | STC17.7 | 0 | 17.7 | 19.6 | 12.7 | 22.2 | M20 | 3/8'' GAS |
| STC | STC17.8 | 0 | 17.8 | 20.0 | 13.4 | 23.8 | 1/2'' GAS | M18 |
| STC | STC18.3 | 0 | 18.3 | 21.4 | 17.5 | 25.4 | - | - |
| STC | STC18.5 | 0 | 18.5 | 20.9 | 14.3 | 24.6 | M22 | 3/4'' UNF |
| STC | STC19 | 0 | 19.0 | 21.5 | 14.3 | 25.8 | M22, 7/8'' UNF | - |
| STC | STC19.4 | 0 | 19.4 | 22.5 | 19.0 | 26.5 | - | - |
| STC | STC20.5 | 0 | 20.5 | 23.2 | 17.5 | 27.2 | - | - |
| STC | STC21.2 | 0 | 21.2 | 23.2 | 12.3 | 27.3 | M24 | - |
| STC | STC21.3 | 0 | 21.3 | 23.2 | 15.9 | 27.0 | 5/8'' GAS | M20, 1/2'' GAS |
| STC | STC22 | 0 | 22.0 | 24.8 | 17.0 | 29.0 | - | M22 x 2 |
| STC | STC22B | 0 | 22.0 | 25.0 | 15.9 | 28.5 | 1'' UNF | M22 |
| STC | STC22.5 | 0 | 22.5 | 25.5 | 17.8 | 28.9 | - | 7/8'' UNF |
| STC | STC22.7 | 0 | 22.7 | 24.9 | 12.0 | 27.0 | - | - |
| STC | STC23.4 | 0 | 23.4 | 26.4 | 17.5 | 29.3 | 3/4'' GAS M27, M26 | M24, 5/8'' GAS |
| STC | STC24 | 0 | 24.0 | 26.9 | 18.0 | 31.0 | - | - |
| STC | STC24.6 | 0 | 24.6 | 29.5 | 27.5 | 34.0 | - | - |
| STC | STC24.7 | 0 | 24.7 | 27.7 | 19.0 | 32.0 | 1.1/8'' UNF | M27, 1'' UNF |
| STC | STC25.2 | 0 | 25.2 | 29.2 | 19.0 | 33.0 | - | - |
| STC | STC26.6 | 0 | 26.6 | 29.7 | 26.3 | 31.6 | 7/8'' UNF | 3/4'' GAS |
| STC | STC28 | 0 | 28.0 | 30.9 | 19.0 | 35.3 | M30 | M27, M28 |
| STC | STC29.2 | 0 | 29.2 | 31.2 | 12.7 | 34.7 | - | M22 x 2 |
| STC | STC30 | 0 | 30.0 | 32.6 | 15.2 | 36.7 | M33, 1'' GAS | M30 |
| STC | STC30.5 | 0 | 30.5 | 33.3 | 14.5 | 37.0 | - | 7/8'' GAS |
| STC | STC31.1 | 0 | 31.1 | 34.3 | 17.5 | 38.1 | 1.3/8'' UNF | - |
| STC | STC31.1B | 0 | 31.1 | 34.4 | 19.0 | 38.1 | M35 | 1.1/4'' UNF |
| STC | STC31.6 | 0 | 31.6 | 36.3 | 24.1 | 40.2 | - | 1.5/16'' UNF |
| STC | STC33.3 | 0 | 33.3 | 34.4 | 9.5 | 38.1 | - | - |
| STC | STC33.3B | 0 | 33.3 | 37.2 | 22.2 | 41.6 | 1.1/2'' UNF | 1.1/8'' GAS |
| STC | STC33.6 | 0 | 33.6 | 37.9 | 12.0 | 42.7 | - | - |
| STC | STC33.9 | 0 | 33.9 | 38.3 | 24.5 | 42.3 | - | - |
| STC | STC33.9B | 0 | 33.9 | 37.3 | 12.3 | 42.2 | 1.5/8'' UNF | 1.3/8'' UNF |
| STC | STC34.9 | 0 | 34.9 | 36.4 | 8.2 | 42.7 | - | - |
| STC | STC35.9 | 0 | 35.9 | 40.2 | 24.5 | 44.1 | - | - |
| STC | STC36.3 | 0 | 36.3 | 38.3 | 12.0 | 42.3 | - | - |
| STC | STC36.9 | 0 | 36.9 | 40.6 | 22.5 | 44.0 | 1.1/4'' GAS | 1.1/8'' GAS |
| STC | STC38.6 | 0 | 38.6 | 40.6 | 12.7 | 44.5 | - | 1.1/2'' UNF |
| STC | STC39.6 | 0 | 39.6 | 42.7 | 18.5 | 47.6 | M42, M45, 1.3/8'' GAS | 1.3/8'' GAS |
| STC | STC40.8 | 0 | 40.8 | 44.7 | 24.0 | 49.0 | - | - |
| STC | STC41.4 | 0 | 41.4 | 44.8 | 19.0 | 49.2 | M45 | 1.1/4'' GAS |
| STC | STC42.5 | 0 | 42.5 | 44.8 | 12.6 | 50.7 | - | - |
| STC | STC43.4 | 0 | 43.4 | 48.5 | 24.5 | 53.3 | - | - |
| STC | STC44.1 | 0 | 44.1 | 46.7 | 18.4 | 49.8 | - | - |
| STC | STC44.4 | 0 | 44.4 | 47.7 | 19.0 | 51.0 | 1.7/8'' UNF - 1.1/2'' GAS | M45 x 1.5/2/3 |
| STC | STC45.2 | 0 | 45.2 | 49.0 | 24.5 | 53.4 | 1.1/2'' GAS | 1.3/8'' GAS |
| STC | STC45.9 | 0 | 45.9 | 46.3 | 9.5 | 50.8 | M48 | - |
| STC | STC46 | 0 | 46.0 | 50.0 | 24.8 | 54.0 | - | - |
| STC | STC47.2 | 0 | 47.2 | 51.9 | 24.0 | 55.8 | - | - |
| STC | STC47.5 | 0 | 47.5 | 50.3 | 25.0 | 54.0 | - | - |
| STC | STC48 | 0 | 48.0 | 52.7 | 25.4 | 57.1 | - | - |
| STC | STC48.6 | 0 | 48.6 | 51.2 | 18.7 | 55.5 | M52 | 1.1/2'' GAS |
| STC | STC49.8 | 0 | 49.8 | 54.0 | 24.3 | 58.0 | M52 | 1.1/2'' GAS |
| STC | STC51.1 | 0 | 51.1 | 54.4 | 25.0 | 57.0 | - | - |
| STC | STC51.5 | 0 | 51.5 | 53.8 | 12.0 | 58.2 | - | - |
| STC | STC53.5 | 0 | 53.5 | 57.0 | 25.1 | 62.4 | M56, M55 | 1.3/4'' GAS |
| STC | STC54 | 0 | 54.0 | 58.4 | 24.5 | 62.4 | - | - |
| STC | STC55 | 0 | 55.0 | 61.0 | 25.0 | 65.0 | - | - |
| STC | STC55.4 | 0 | 55.4 | 58.8 | 25.1 | 65.0 | M60, M58, 2'' GAS | M58 |
| STC | STC57.5 | 0 | 57.5 | 57.6 | 12.8 | 63.6 | - | - |
| STC | STC59.3 | 0 | 59.3 | 67.3 | 31.7 | 70.3 | - | - |
| STC | STC59.6 | 0 | 59.6 | 62.6 | 24.6 | 66.7 | M62, M60 | M60, 2'' GAS |
| STC | STC62 | 0 | 62.0 | 66.4 | 28.0 | 71.0 | - | - |
| STC | STC63.3 | 0 | 63.3 | 69.8 | 25.4 | 73.0 | - | - |
| STC | STC64.5 | 0 | 64.5 | 67.3 | 15.8 | 70.6 | - | - |
| STC | STC68.1 | 0 | 68.1 | 70.9 | 19.0 | 74.6 | - | - |
| STC | STC70 | 0 | 70.0 | 75.8 | 25.4 | 79.4 | M76, M75, 2.1/2'' GAS | - |
| STC | STC74 | 0 | 74.0 | 77.0 | 18.7 | 82.5 | - | - |
| STC | STC74B | 0 | 74.0 | 76.8 | 24.4 | 80.0 | - | - |
| STC | STC76.8 | 0 | 76.8 | 82.2 | 25.4 | 85.7 | - | - |
| STC | STC77.1 | 0 | 77.1 | 80.7 | 19.0 | 85.7 | - | 2.1/2'' GAS |
| STC | STC80 | 0 | 80.0 | 86.1 | 25.1 | 89.8 | 3'' GAS | - |
| STC | STC84.2 | 0 | 84.2 | 90.8 | 28.0 | 94.5 | - | 3'' GAS |
| STC | STC85.3 | 0 | 85.3 | 88.0 | 19.0 | 92.0 | - | - |
| STC | STC87.5 | 0 | 87.5 | 93.6 | 34.3 | 96.7 | - | - |
| STC | STC88.1 | 0 | 88.1 | 93.3 | 28.6 | 96.5 | - | - |
| STC | STC92.1 | 0 | 92.1 | 97.0 | 32.0 | 100.0 | - | - |
| STC | STC93.5 | 0 | 93.5 | 100.3 | 26.5 | 107.5 | - | - |
| STC | STC94.5 | 0 | 94.5 | 100.6 | 34.5 | 103.6 | - | - |
| STC | STC96,5 | 0 | 96.5 | 102.0 | 31.0 | 110.0 | - | - |
| STC | STC98 | 0 | 98.0 | 102.0 | 24.7 | 107.2 | - | - |
| STC | STC98.2 | 0 | 98.2 | 103.3 | 28.8 | 106.0 | - | - |
| STC | STC101 | 0 | 101.0 | 107.0 | 28.6 | 109.0 | - | - |
| STC | STC101.9 | 0 | 101.9 | 107.5 | 28.6 | 109.0 | - | - |
| STC | STC106.7 | 0 | 106.7 | 111.7 | 28.6 | 113.3 | - | - |
| STC | STC108 | 0 | 108.0 | 114.1 | 35.2 | 118.5 | - | - |
| STC | STC109 | 0 | 109.0 | 113.0 | 27.0 | 123.0 | - | - |
| STC | STC110 | 0 | 110.0 | 115.0 | 28.0 | 118.5 | - | - |
| STC | STC111.5 | 0 | 111.5 | 117.6 | 35.0 | 122.0 | - | - |
| STC | STC112.1 | 0 | 112.1 | 114.3 | 28.6 | 116.8 | - | - |
| STC | STC124 | 0 | 124.0 | 128.0 | 23.0 | 134.0 | - | - |
| STC | STC129 | 0 | 129.0 | 135.1 | 36.5 | 139.5 | - | - |
| STC | STC133 | 0 | 133.0 | 137.0 | 22.0 | 143.0 | - | - |
| STC | STC139.5 | 0 | 139.5 | 145.6 | 36.5 | 150.0 | - | - |
| STC | STC142,5 | 0 | 142,5 | 148 | 33 | 159,5 | - | - |
| STC | STC146,8 | 0 | 146,8 | 151 | 30,5 | 159,5 | - | - |
| STC | STC153 | 0 | 153 | 161,5 | 29,6 | 178,9 | - | - |
| STC | STC157 | 0 | 157 | 163 | 38 | 172 | - | - |
| STC | STC164 | 0 | 164 | 166 | 21,5 | 174 | - | - |
| STC | STC168 | 0 | 168 | 172 | 38 | 190 | - | - |
| STC | STC168B | 0 | 168 | 172 | 21,6 | 179 | - | - |
| STC | STC173 | 0 | 173 | 181,3 | 38,5 | 195 | - | - |
| STC | STC177 | 0 | 177 | 185 | 38 | 195 | ||
| STC | STC187,5 | 0 | 187,5 | 191,5 | 21,7 | 197,5 | ||
| STC | STC192 | 0 | 192 | 200 | 38 | 215 | ||
| STC | STC199 | 0 | 199 | 204 | 38 | 214 | ||
| STC | STC203,5 | 0 | 203,5 | 208,5 | 26 | 216 | ||
| STC | STC207,5 | 0 | 207,5 | 212 | 26,5 | 223 | ||
| STC | STC216 | 0 | 216 | 223,6 | 29,1 | 241,5 | ||
| STC | STC221,5 | 0 | 221,5 | 230 | 23,7 | 237 | ||
| STC | STC223 | 0 | 223 | 230,5 | 38 | 240 | ||
| STC | STC232 | 0 | 232 | 239 | 46 | 250 | ||
| STC | STC238-242 | 0 | 238 | 242 | 30 | 246 | ||
| STC | STC238 | 0 | 238 | 250 | 46 | 263 | ||
| STC | STC249 | 0 | 249 | 254 | 46 | 264 | ||
| STC | STC250 | 0 | 250 | 261 | 46 | 280 | ||
| STC | STC270 | 0 | 270 | 281 | 43 | 297 | ||
| STC | STC278 | 0 | 278 | 286 | 46 | 304 | ||
| STC | STC284 | 0 | 284 | 293 | 46 | 315 | ||
| STC | STC292 | 0 | 292 | 299 | 46 | 315 | ||
| STC | STC298 | 0 | 298 | 301 | 23 | 314 | ||
| STC | STC313 | 0 | 313 | 325 | 50,5 | 340 |
