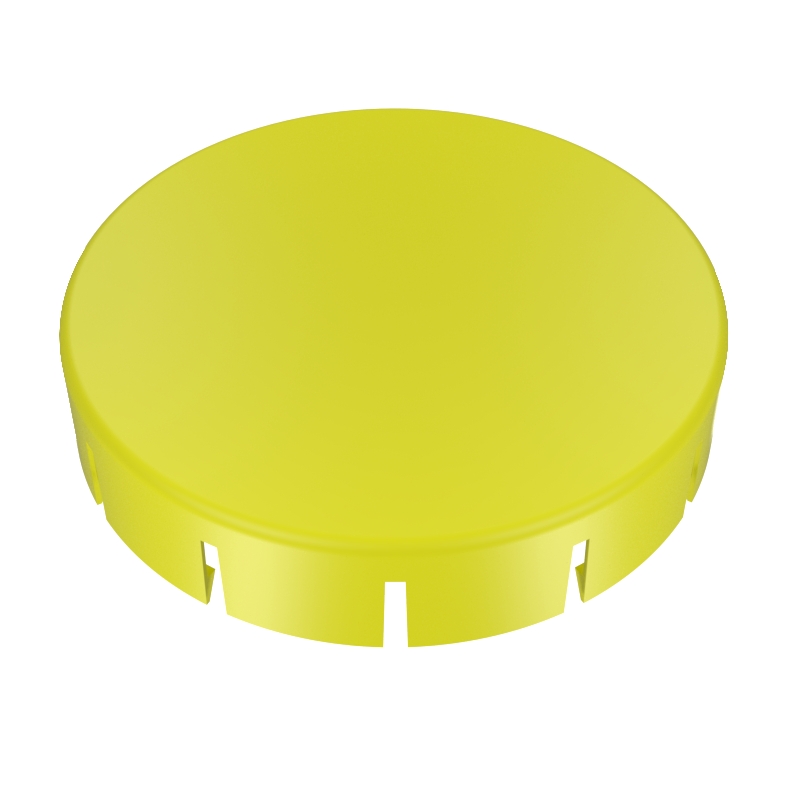

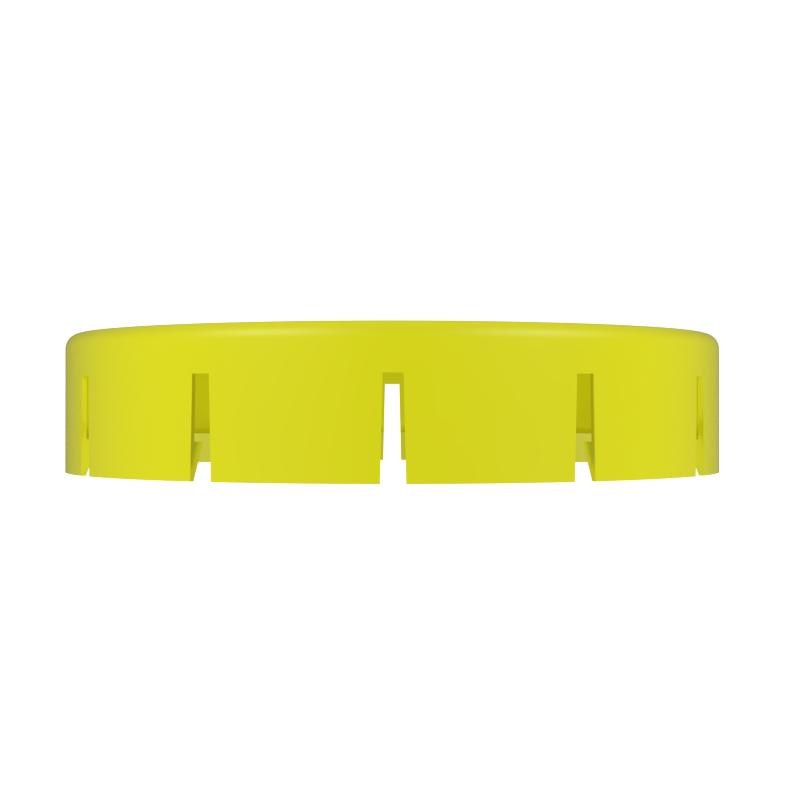

Protezione per flange

Codice serie: EP310
Materiale:
Polietilene (PE-LD)
Colore: Giallo

Articoli speciali a richiesta.

Stampa Scheda

    Serie Codice Evidenzia ø FLANGIA Serie pressioni (bar) D H Y
    EP310 EP310 - ANSI 1
    EP310 EP310/15/10-40 0 DN 15 10, 16, 25, 40 95 17 7,5
    EP310 EP310/20/10-40 0 DN 20 10, 16, 25, 40 105 19 7,5
    EP310 EP310/25/10-40 0 DN 25 10, 16, 25, 40 115 19 7,5
    EP310 EP310/32/10-40 0 DN 32 10, 16, 25, 40 140 19 7,5
    EP310 EP310/40/10-40 0 DN 40 10, 16, 25, 40 150,7 19,5 7,5
    EP310 EP310/50/10-40 0 DN 50 10, 16, 25, 40 165 21 7,5
    EP310 EP310/65/10-40 0 DN 65 10, 16, 25, 40 185 22 7,5
    EP310 EP310/80/10-40 0 DN 80 10, 16, 25, 40 200 24 7,5
    EP310 EP310/100/10-16 0 DN 100 10, 16 220 24 7,5
    EP310 EP310/100/25-40 0 DN 100 25, 40 235 24 7,5
    EP310 EP310/125/10-16 0 DN 125 10, 16 250 25 7,5
    EP310 EP310/150/10-16 0 DN 150 10, 16 285 25 7,5
    EP310 EP310/150/25-40 0 DN 150 25, 40 300 27 7,5
    EP310 EP310/200/10-16 0 DN 200 10, 16 340 27 7,5
    EP310 EP310/200/25 0 DN 200 25 360 30 12
    EP310 EP310/200/40 0 DN 200 40 375 34 7,5
    EP310 EP310/250/10 1 DN 250 10 395 29 8
    EP310 EP310/250/16 0 DN 250 16 406,5 30 8,5
    EP310 EP310/300/10 0 DN 300 10 445 29 7,8
    EP310 EP310/300/16 0 DN 300 16 460 31 8
    EP310 EP310 - ANSI 1
    EP310 EP310/1/2-150 0 1/2" 150 89 14,2 7,5
    EP310 EP310/1/2-300 0 1/2" 300 95 17 4,5
    EP310 EP310/1/2-600 0 1/2" 600 95 17 4,5
    EP310 EP310/3/4-150 0 3/4" 150 98,5 15,7 7,5
    EP310 EP310/1-150 0 1" 150 108 17,5 7,5
    EP310 EP310/1-300 0 1" 300 124 20,5 4,5
    EP310 EP310/1-600 0 1" 600 124 20,5 7,5
    EP310 EP310/1.1/2-150 0 1.1/2" 150 127 20,5 7,5
    EP310 EP310/2-150 0 2" 150 152,4 22,1 4,5
    EP310 EP310/2-300 2" 300 165 21 4,5
    EP310 EP310/3-150 3" 150 190,5 27 7,5
    EP310 EP310/4-150 4" 150 228,5 28 7,3
    EP310 EP310/6-150 6" 150 279,5 29,2 7,5
    EP310 EP310/10-150 10" 150 406,5 30 8,5
