116

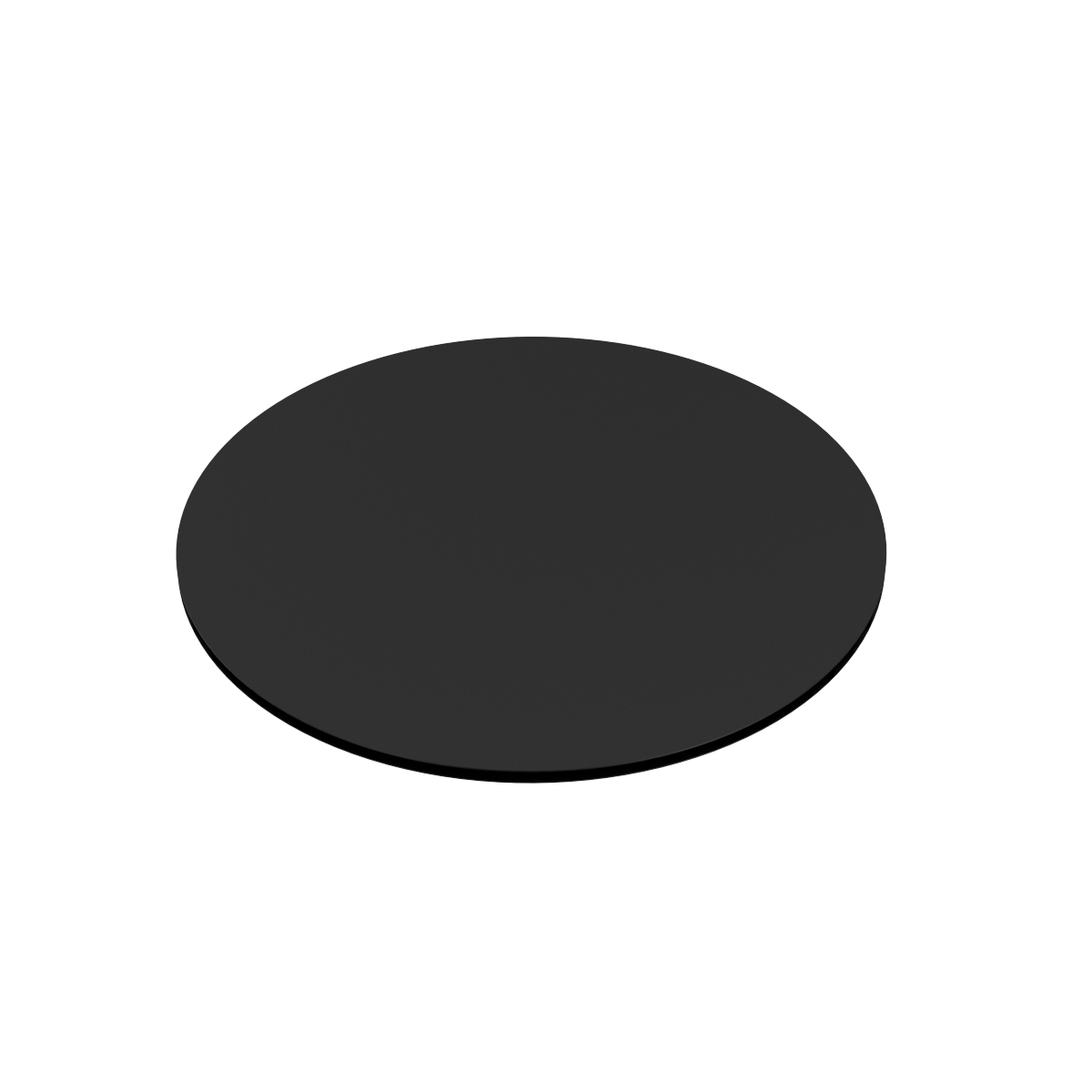

Disco adesivo in alveolare per flange
Codice serie: DAPA
Materiale:
Polipropilene (PP)
Colore: Nero
A richiesta possiamo modificare diametro, materiale e adesivo
| Serie | Codice | Evidenzia | ظ disco | ظ nominale | H | Serie pressioni (bar) |
|---|---|---|---|---|---|---|
| DAPA | DAPA - ANSI | 1 | ||||
| DAPA | DAPA 1/2 | 0 | 36 | 1/2" | 3 | |
| DAPA | DAPA 3/4 | 0 | 45 | 3/4" | 3 | |
| DAPA | DAPA 1 | 0 | 54 | 1" | 3 | |
| DAPA | DAPA 1 1/2 | 0 | 75 | 1 1/2" | 3 | |
| DAPA | DAPA 2 | 0 | 95 | 2" | 3 | |
| DAPA | DAPA 3 | 0 | 130 | 3" | 3 | |
| DAPA | DAPA 4 | 0 | 160 | 4" | 3 | |
| DAPA | DAPA 5 | 0 | 200 | 5" | 3 | |
| DAPA | DAPA 6 | 0 | 220 | 6" | 3 | |
| DAPA | DAPA 8 | 0 | 275 | 8" | 3 | |
| DAPA | DAPA 10 | 0 | 330 | 10" | 3 | |
| DAPA | DAPA 12 | 0 | 390 | 12" | 3 | |
| DAPA | DAPA 14 | 0 | 415 | 14" | 3 | |
| DAPA | DAPA 16 | 0 | 475 | 16" | 3 | |
| DAPA | DAPA 18 | 0 | 540 | 18" | 3 | |
| DAPA | DAPA 20 | 0 | 590 | 20" | 3 | |
| DAPA | DAPA 24 | 0 | 700 | 24" | 3 | |
| DAPA | DAPA - DIN | 1 | ||||
| DAPA | DAPA DN 10 | 0 | 40 | DN 10 | 3 | 6, 10, 16, 25, 40, 64 |
| DAPA | DAPA DN 15 | 0 | 45 | DN 15 | 3 | 6, 10, 16, 25, 40, 64 |
| DAPA | DAPA DN 20 | 0 | 58 | DN 20 | 3 | 6, 10, 16, 25, 40, 64 |
| DAPA | DAPA DN 25 | 0 | 68 | DN 25 | 3 | 6, 10, 16, 25, 40, 64 |
| DAPA | DAPA DN 32 | 0 | 78 | DN 32 | 3 | 6, 10, 16, 25, 40, 64 |
| DAPA | DAPA DN 40 | 0 | 88 | DN 40 | 3 | 6, 10, 16, 25, 40, 64 |
| DAPA | DAPA DN 50 | 0 | 102 | DN 50 | 3 | 6, 10, 16, 25, 40, 64 |
| DAPA | DAPA DN 65 | 0 | 122 | DN 65 | 3 | 6, 10, 16, 25, 40, 64 |
| DAPA | DAPA DN 80 | 0 | 138 | DN 80 | 3 | 6, 10, 16, 25, 40, 64 |
| DAPA | DAPA DN 100 | 0 | 158 | DN 100 | 3 | 6, 10, 16, 25, 40, 64 |
| DAPA | DAPA DN 125 | 0 | 188 | DN 125 | 3 | 6, 10, 16, 25, 40, 64, 100, 160 |
| DAPA | DAPA DN 150 | 0 | 212 | DN 150 | 3 | 6, 10, 16, 25, 40, 64, 100, 160 |
| DAPA | DAPA DN 200 | 0 | 268 | DN 200 | 3 | 6, 10, 16, 25, 40, 64, 100, 160 |
