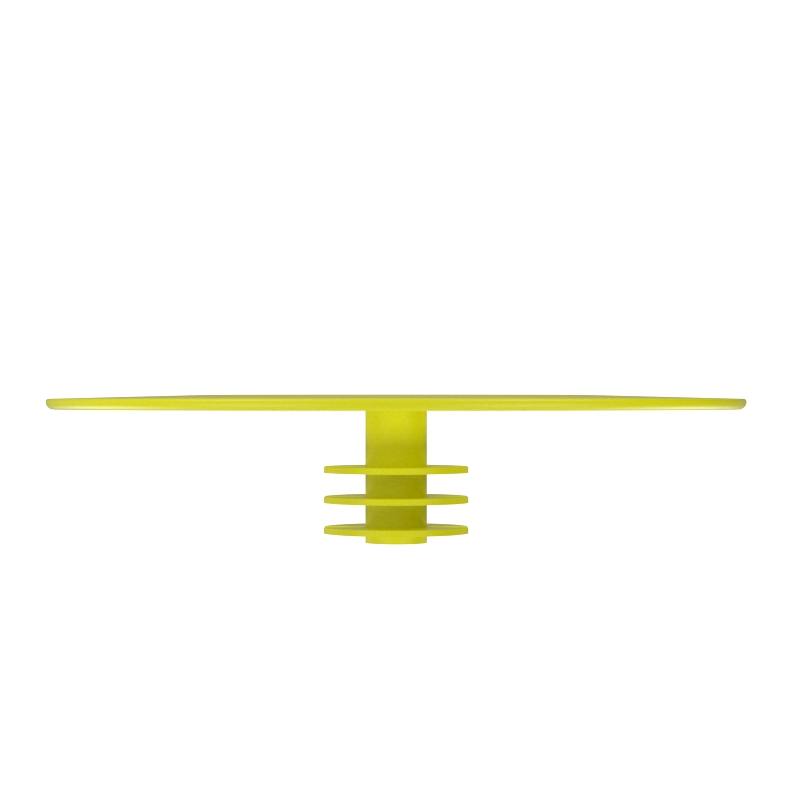

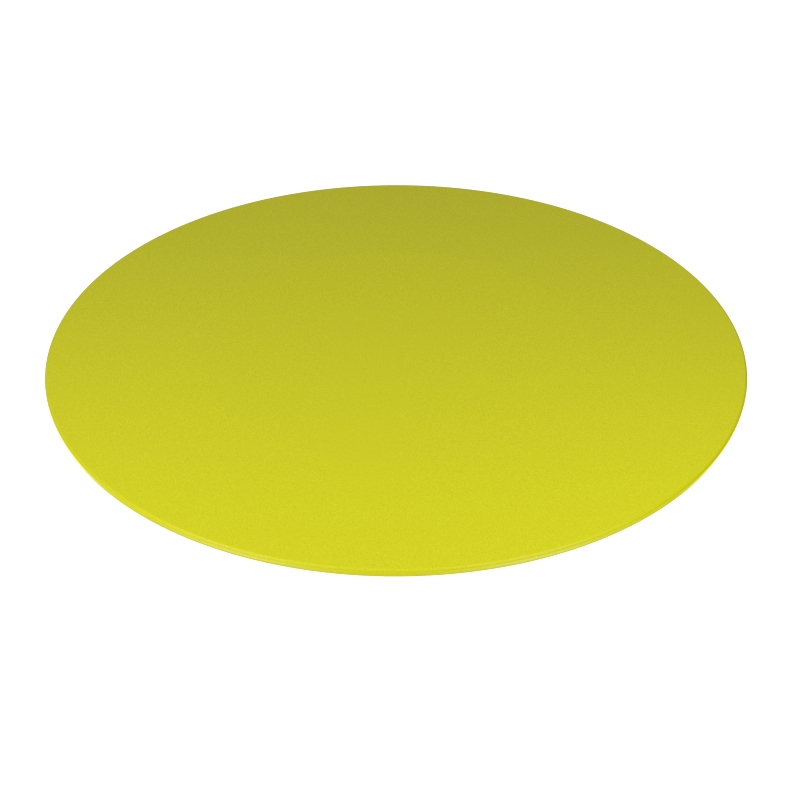

Coperchio per flange
Codice serie: CXF
Materiale:
Polietilene (PE-LD)
Colore: Giallo
A richiesta possiamo modificare il colore standard
| Serie | Codice | Evidenzia | DN | Diametro nominale | d | D | A | h | H |
|---|---|---|---|---|---|---|---|---|---|
| CXF | CXF10 | 0 | DN 10 | 3/8'' | 6,8 | 14,2 | 86 | 20 | 21 |
| CXF | CXF15 | 0 | DN 15 | 1/2" | 8,5 | 19 | 90 | 20 | 21 |
| CXF | CXF20 | 0 | DN 20 | 3/4" | 13 | 24 | 100 | 20 | 21 |
| CXF | CXF25 | 0 | DN 25 | 1" | 18 | 30 | 110 | 24 | 25 |
| CXF | CXF32 | 0 | DN 32 | 1.1/4" | 23 | 39 | 136 | 30 | 32 |
| CXF | CXF40 | 0 | DN 40 | 1.1/2" | 30 | 45,5 | 146 | 30 | 32 |
| CXF | CXF50 | 0 | DN 50 | 2" | 40 | 56,5 | 160 | 30 | 32 |
| CXF | CXF65 | 0 | DN 65 | 2.1/2" | 53 | 72,5 | 180 | 34 | 36 |
| CXF | CXF80 | 0 | DN 80 | 3" | 66 | 85,5 | 196 | 34 | 36 |
| CXF | CXF100 | 0 | DN 100 | 4" | 86 | 110 | 216 | 44 | 46 |
| CXF | CXF125 | 0 | DN 125 | 5" | 110 | 134 | 246 | 44 | 46 |
| CXF | CXF150 | 0 | DN 150 | 6" | 139 | 163 | 280 | 48 | 50 |
| CXF | CXF200 | 0 | DN 200 | 8" | 186 | 210 | 336 | 50 | 52 |
| CXF | CXF250 | 0 | DN 250 | 10" | 237 | 263 | 403 | 50 | 52 |
| CXF | CXF300 | 0 | DN 300 | 12" | 284 | 319 | 450 | 55 | 57 |
| CXF | CXF350 | 0 | DN 350 | 14'' | 295 | 340 | 465 | 45 | 47 |
| CXF | CXF400 | 0 | DN 400 | 16'' | 351 | 410 | 586 | 60 | 62 |
| CXF | CXF450 | 0 | DN 450 | 18" | 382 | 445 | 540 | 45 | 47 |
