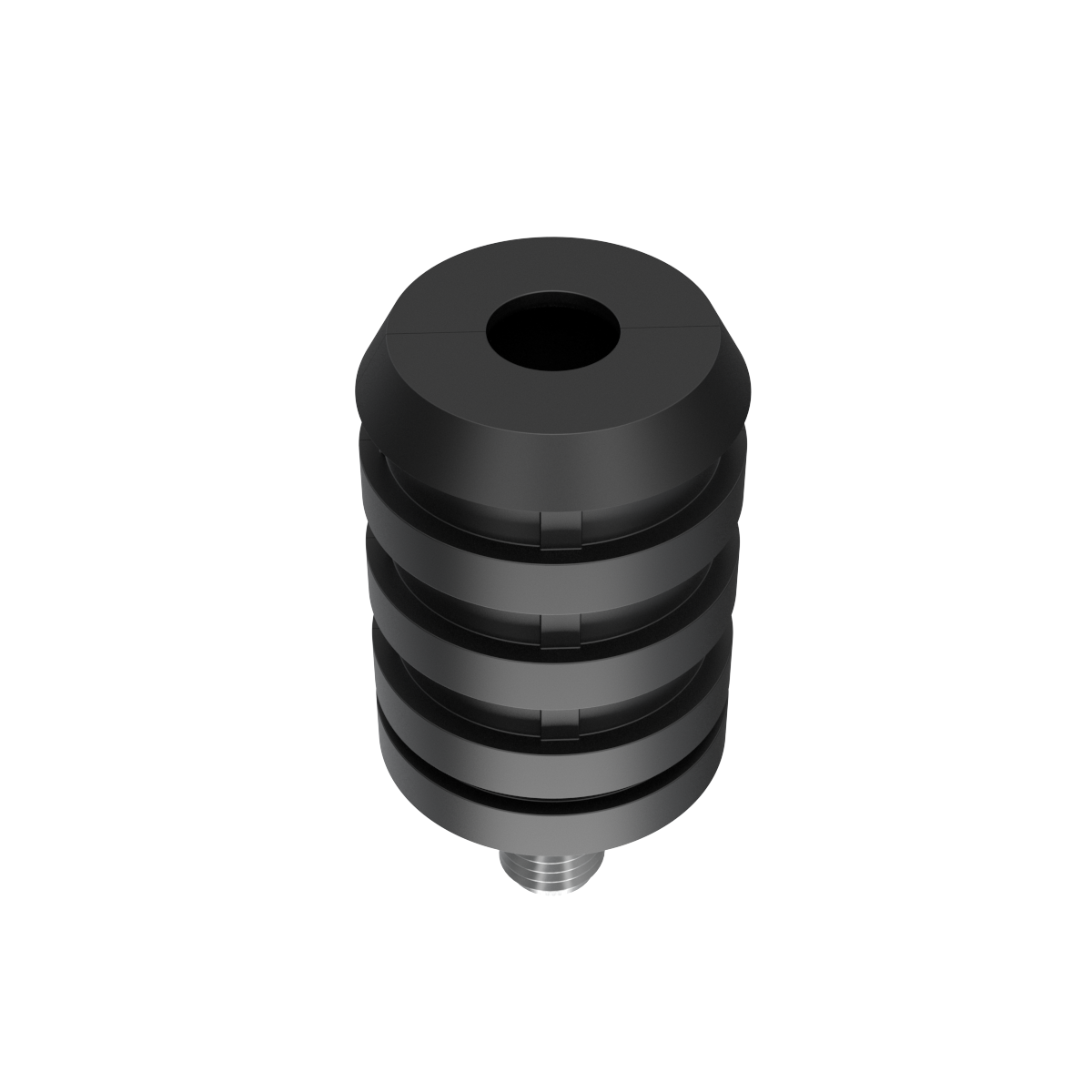

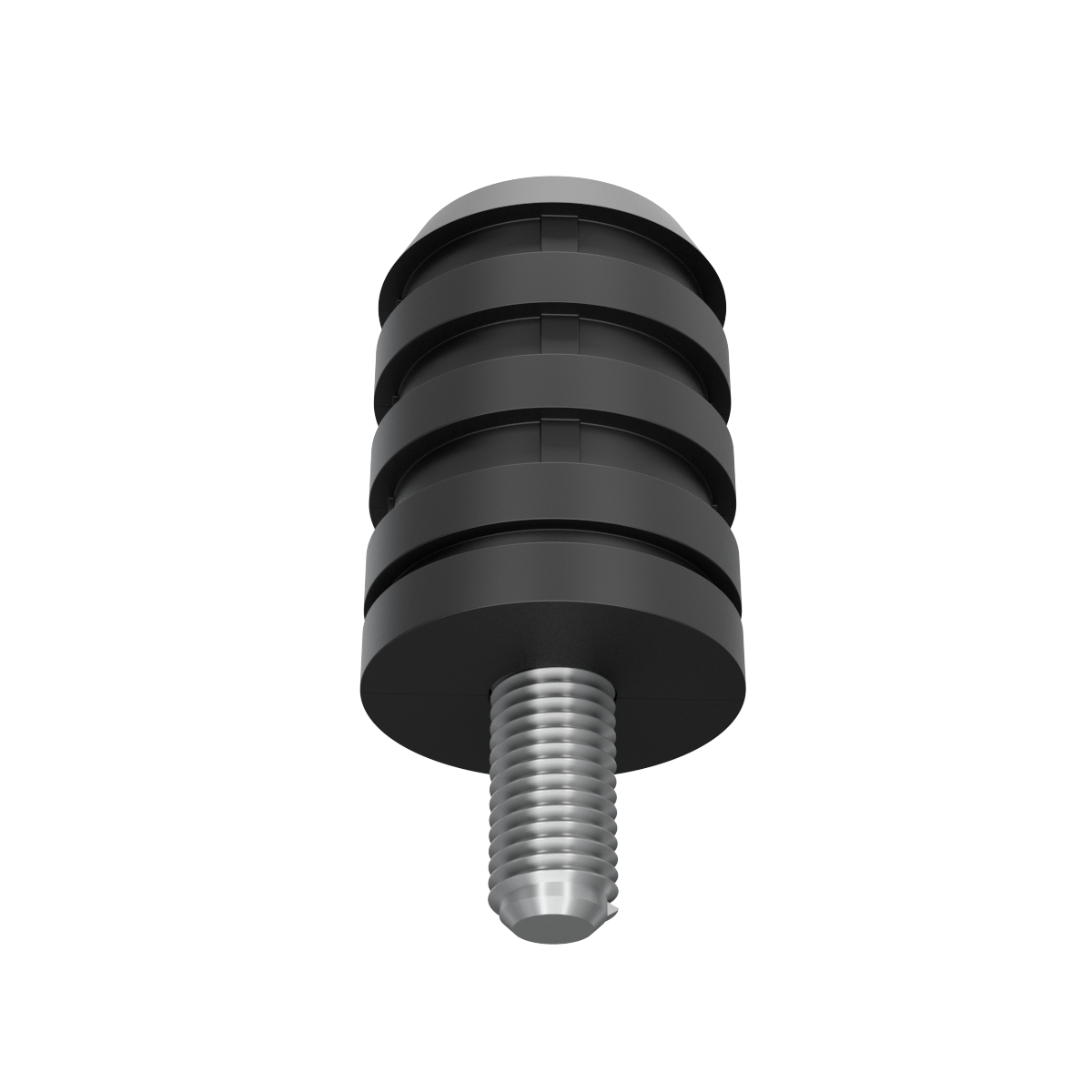

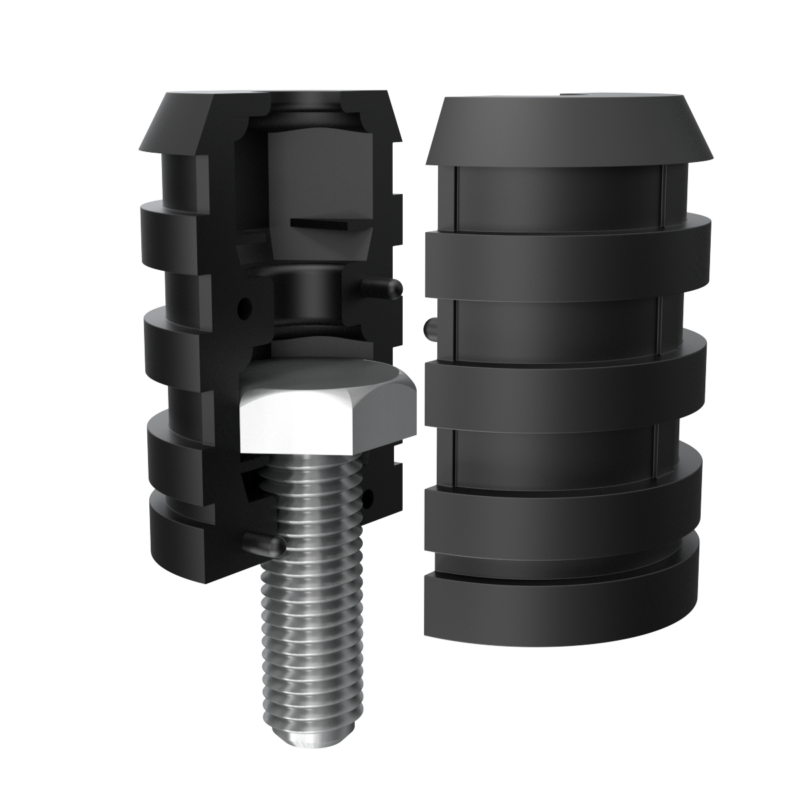

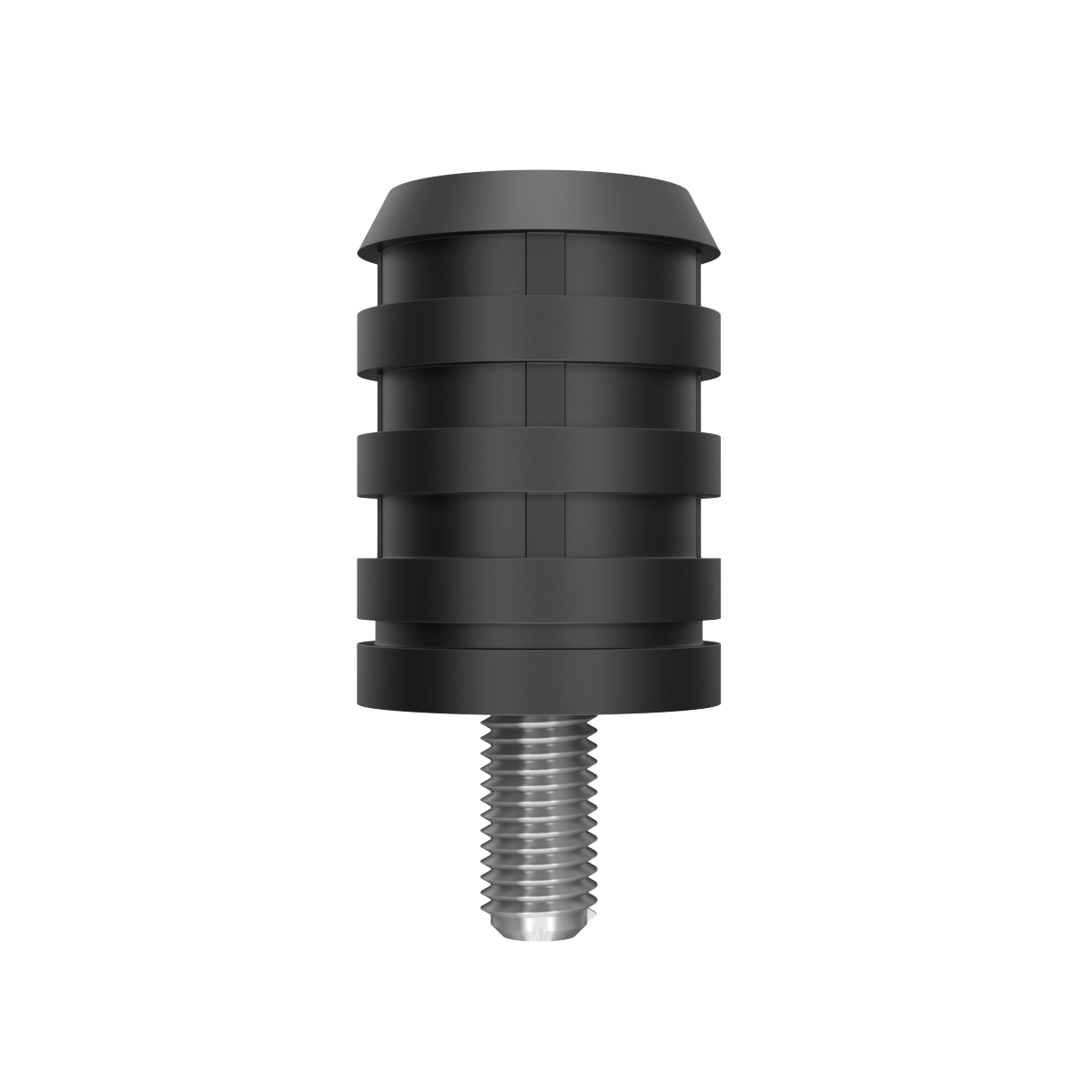

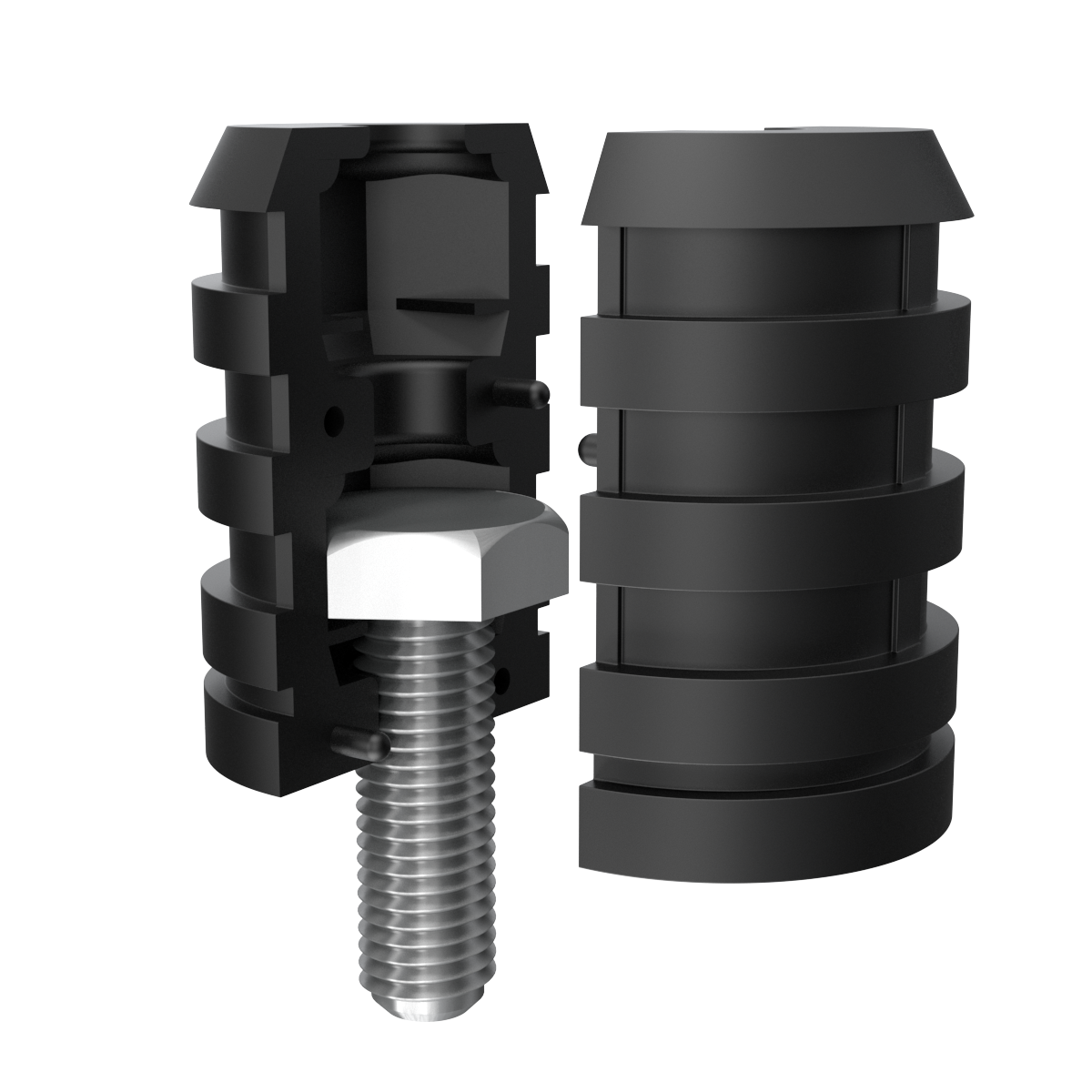

Connettore componibile tondo (bullone)
Codice serie: CTETB
Materiale:
Bullone Metallico, Nylon PA6
Colore: NERO
| Serie | Codice | Evidenzia | D | Diametro esterno tubo | Spessore tubo | H | Filetto |
|---|---|---|---|---|---|---|---|
| CTETB | CTETB16x1.0M6 | 0 | 14 | 16 | 1.0 | 42 | M6 |
| CTETB | CTETB19x1.5M6 | 0 | 16 | 19 | 1.5 | 39 | M6 |
| CTETB | CTETB20x1.0M8 | 0 | 18 | 20 | 1.0 | 42 | M8 |
| CTETB | CTETB20x2.0M8 | 0 | 16 | 20 | 2.0 | 42 | M8 |
| CTETB | CTETB22x1.5M6 | 0 | 19 | 22 | 1.5 | 42 | M6 |
| CTETB | CTETB22x1.0M8 | 0 | 20 | 22 | 1.0 | 42 | M8 |
| CTETB | CTETB22x1.2M8 | 0 | 19,6 | 22 | 1.2 | 42 | M8 |
| CTETB | CTETB25x1.5M6 | 0 | 22 | 25 | 1.5 | 42 | M6 |
| CTETB | CTETB25x1.5M8 | 0 | 22 | 25 | 1.5 | 42 | M8 |
| CTETB | CTETB28x1.5M6 | 0 | 25 | 28 | 1.5 | 41 | M6 |
| CTETB | CTETB28x2.0M8 | 0 | 24 | 28 | 2.0 | 42 | M8 |
| CTETB | CTETB30x2.0M6 | 0 | 26 | 30 | 2.0 | 35 | M6 |
| CTETB | CTETB30x1.5M8 | 0 | 27 | 30 | 1.5 | 42 | M8 |
| CTETB | CTETB30x2.0M8 | 0 | 26 | 30 | 2.0 | 42 | M8 |
| CTETB | CTETB30x1.5M10 | 0 | 27 | 30 | 1.5 | 42 | M10 |
| CTETB | CTETB32x1.5M10 | 0 | 29 | 32 | 1.5 | 42 | M10 |
| CTETB | CTETB35x1.5M10 | 0 | 32 | 35 | 1.5 | 42 | M10 |
| CTETB | CTETB35x2.0M10 | 0 | 31 | 35 | 2.0 | 43 | M10 |
| CTETB | CTETB38x1.2M10 | 0 | 35,6 | 38 | 1.2 | 42 | M10 |
