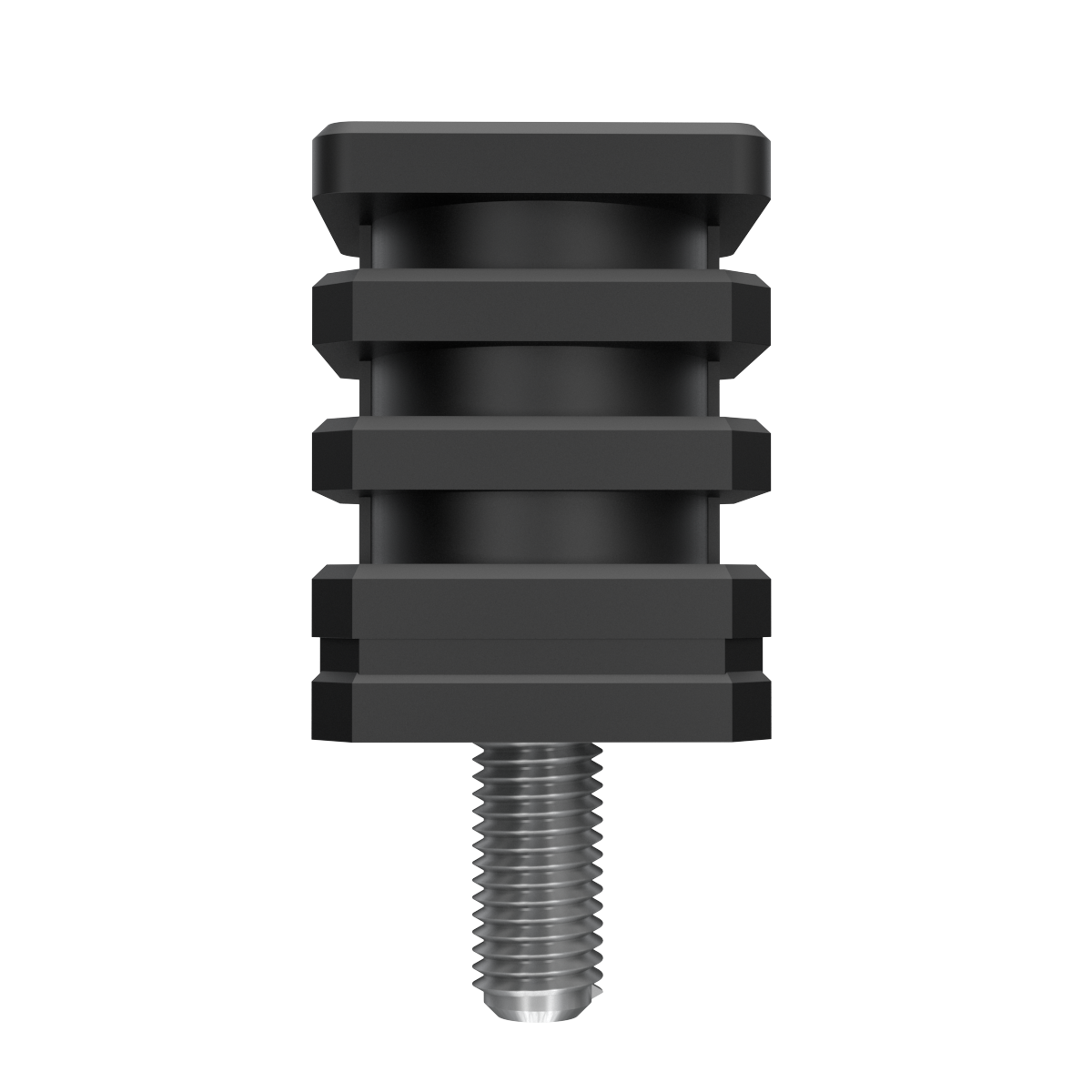

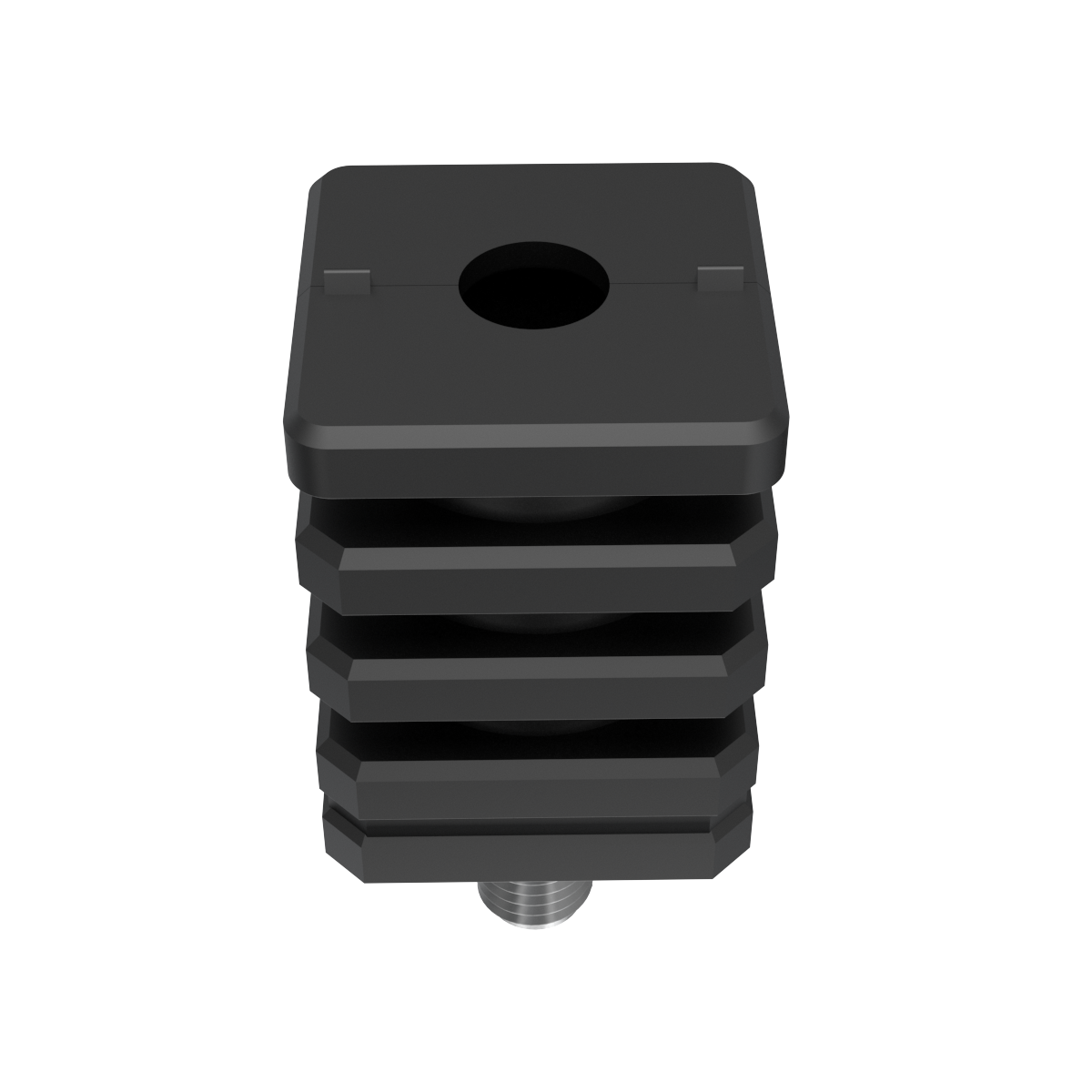

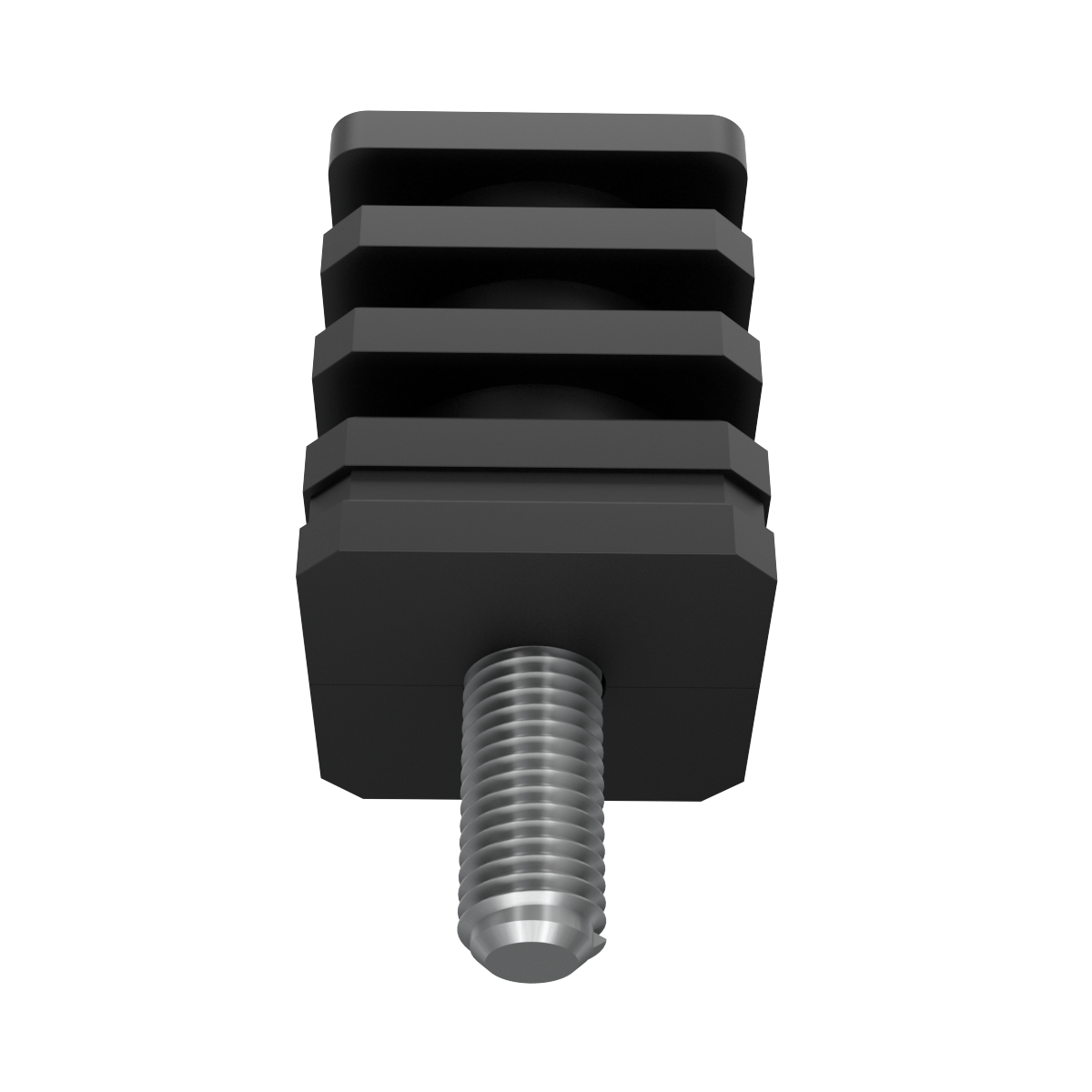

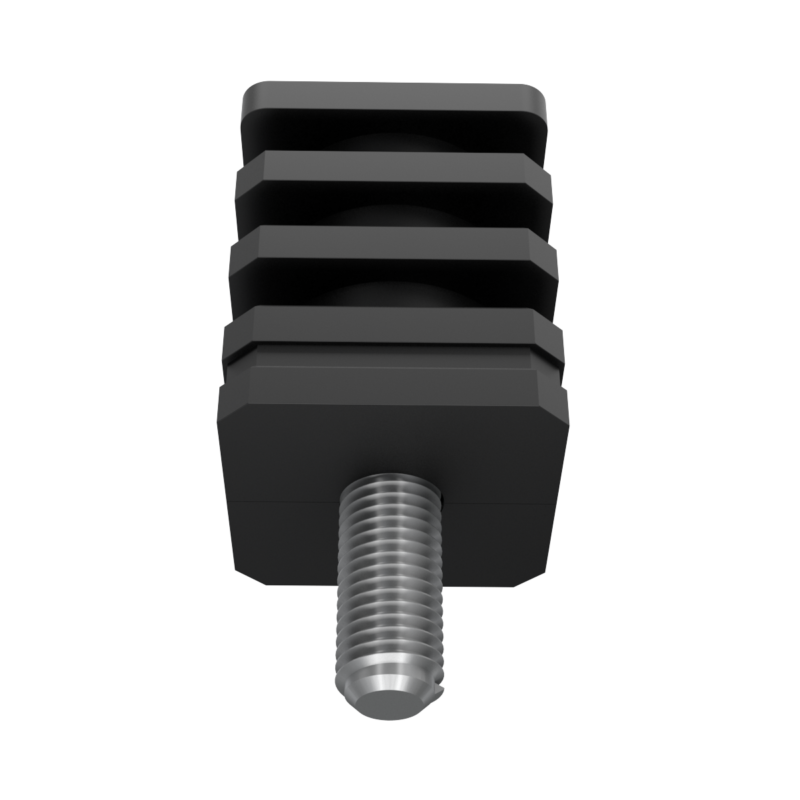

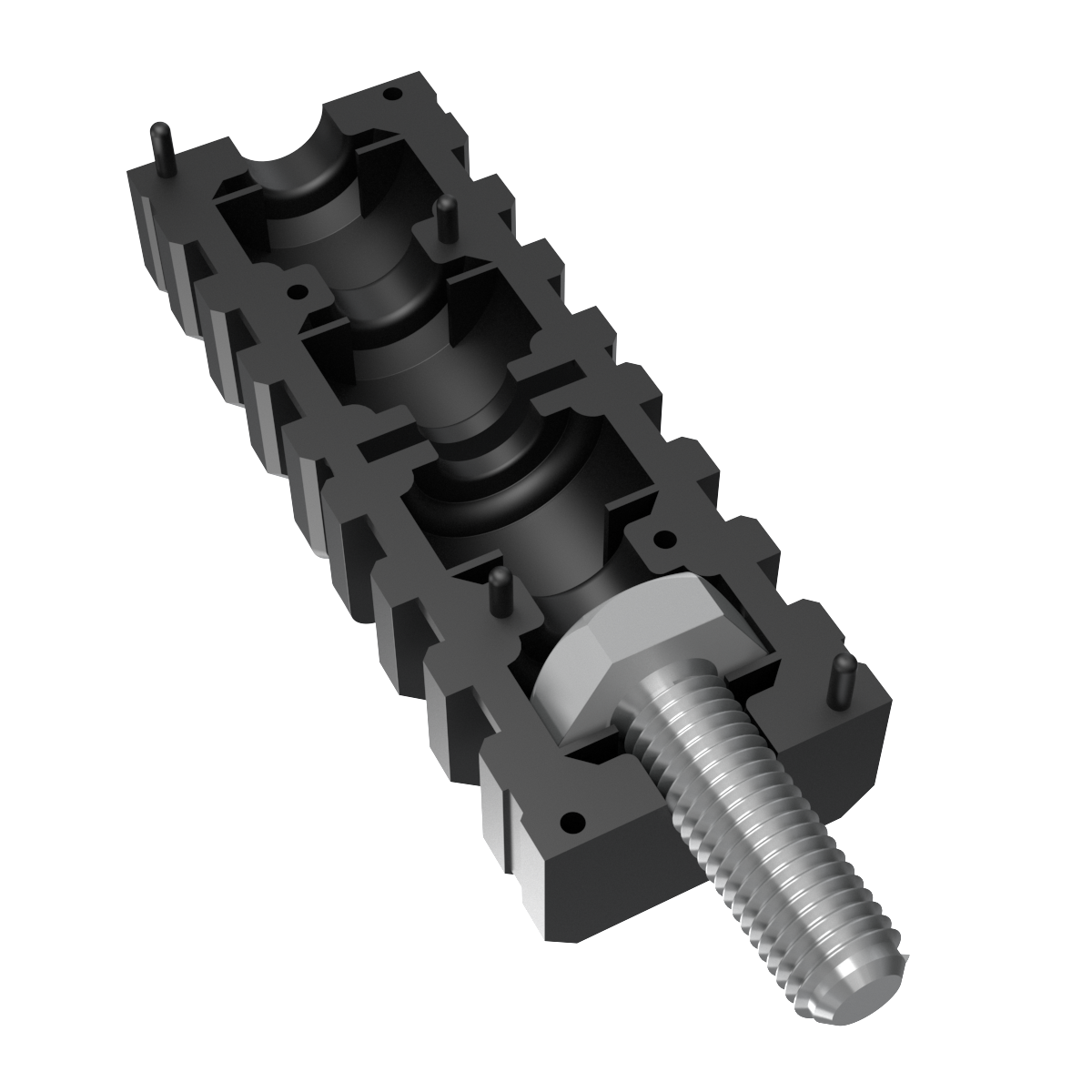

Connettore componibile quadrato (bullone)
Codice serie: CTEQB
Materiale:
Colore: Nero

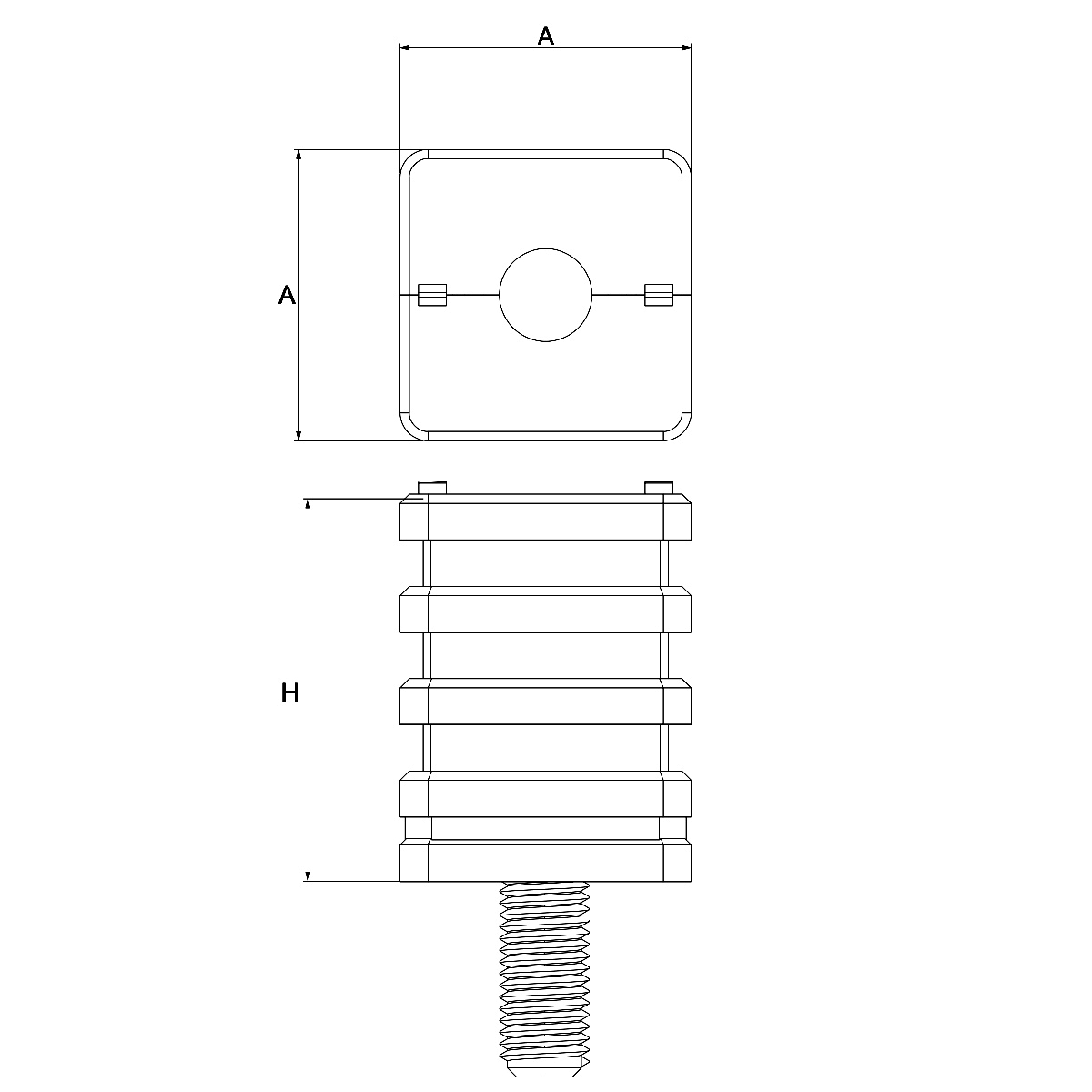

| Serie | Codice | Evidenzia | A | Dimensione Tubo | Spessore tubo | H | Filetto | Lunghezza Filetto |
|---|---|---|---|---|---|---|---|---|
| CTEQB | CTEQB25x1.5M8 | 0 | 22 | 25x25 | 1.5 | 42 | M8 | 30 |
| CTEQB | CTEQB25x1.5M10 | 0 | 22 | 25x25 | 1.5 | 42 | M10 | 30 |
| CTEQB | CTEQB30x1.5M8 | 0 | 27 | 30x30 | 1.5 | 41 | M8 | 30 |
| CTEQB | CTEQB30x2.0M8 | 0 | 26 | 30x30 | 2.0 | 41 | M8 | 30 |
| CTEQB | CTEQB30x1.5M10 | 0 | 27 | 30x30 | 1.5 | 42 | M10 | 30 |
| CTEQB | CTEQB30x2.0M10 | 0 | 26 | 30x30 | 2.0 | 41 | M10 | 30 |
| CTEQB | CTEQB35x2.0M10 | 0 | 31 | 35x35 | 2.0 | 42 | M10 | 30 |
| CTEQB | CTEQB40x2.0M10 | 0 | 36 | 40x40 | 2.0 | 42 | M10 | 30 |
| CTEQB | CTEQB40x1.2M12 | 0 | 37,6 | 40x40 | 1.2 | 40 | M12 | 30 |
| CTEQB | CTEQB45x1.5M10 | 0 | 42 | 45x45 | 1.5 | 40 | M10 | 30 |
