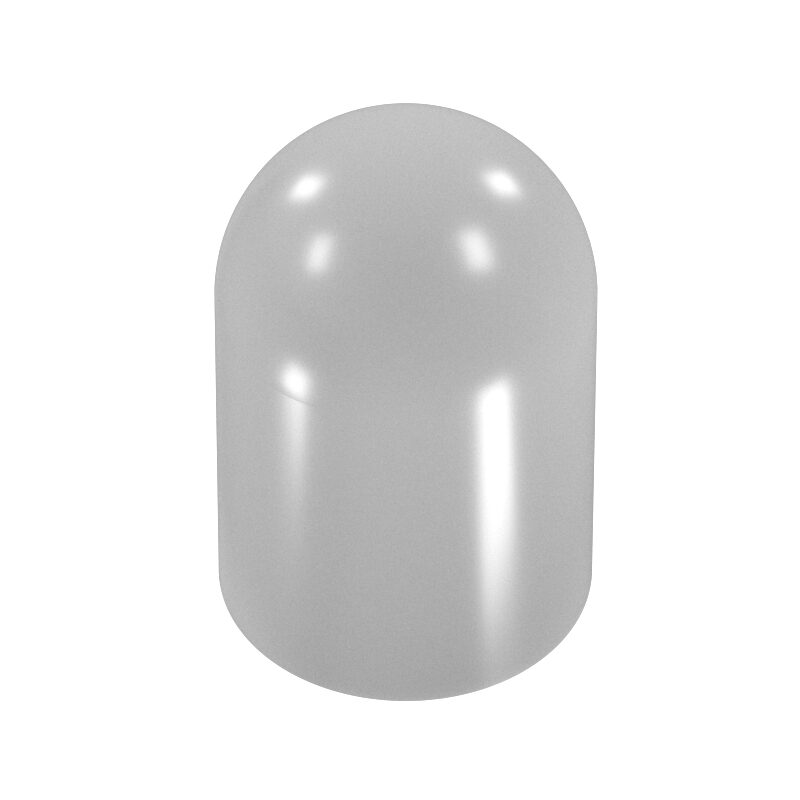

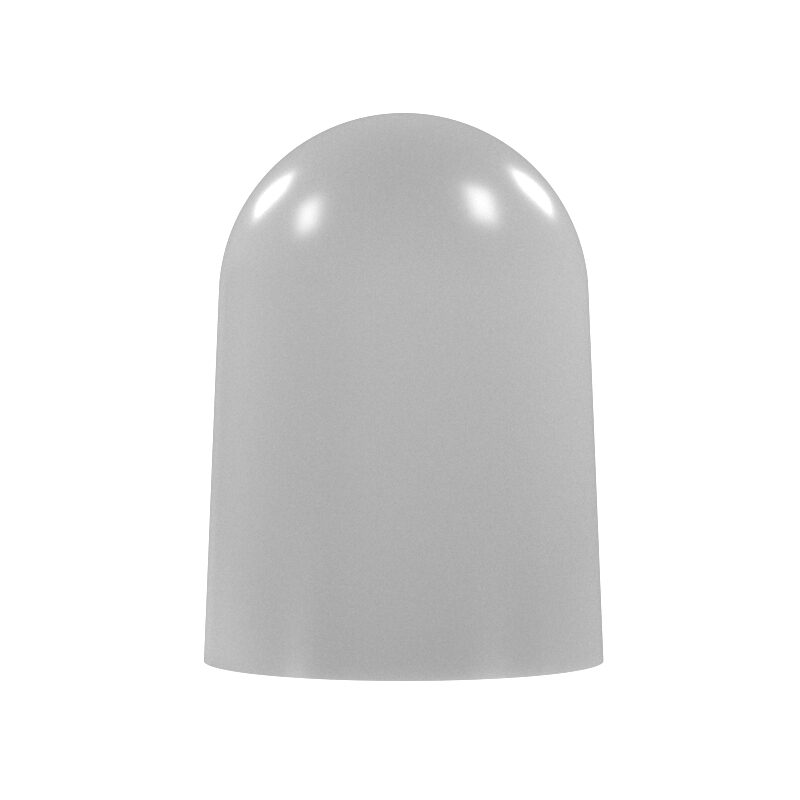

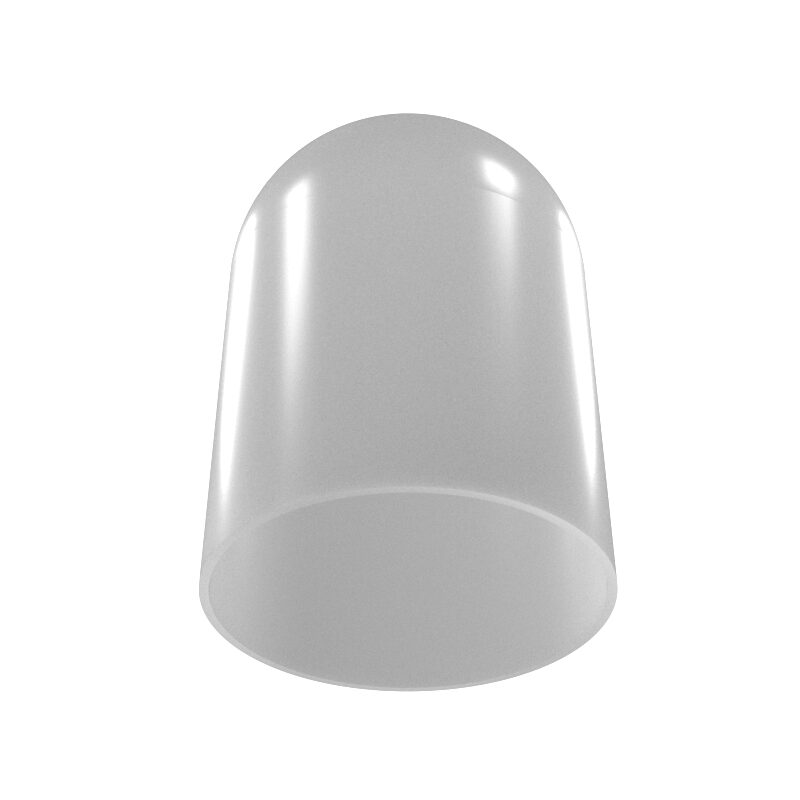

Cappellotti in silicone
Codice serie: CS
Materiale:
Silicone
Colore: Naturale
Per alte temperature: resistente fino a 315 °C

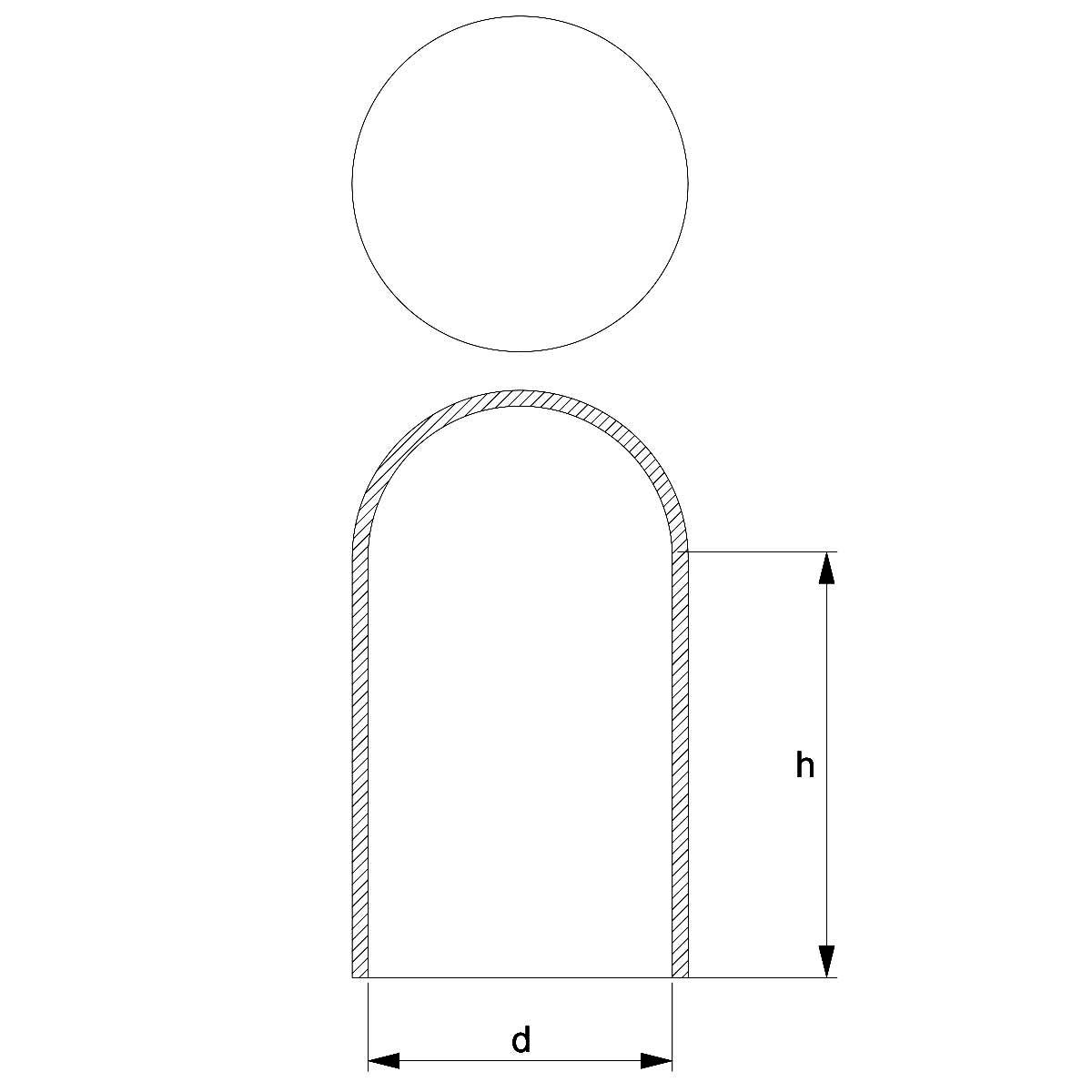

Serie | Codice | Evidenzia | d | h | Riferimenti di utilizzo | Metrico | Riferimenti di utilizzo | UNF | Riferimenti di utilizzo | GAS/BSP |
---|---|---|---|---|---|---|---|
CS | CS0.5x12.7 | 0 | 0.5 | 12.7 | - | - | - |
CS | CS1.6x19.1 | 0 | 1.6 | 19.1 | - | 1/16" | - |
CS | CS1.8x25.4 | 0 | 1.8 | 25.4 | - | - | - |
CS | CS2.4x19.1 | 0 | 2.4 | 19.1 | - | - | - |
CS | CS2.4x25.4 | 0 | 2.4 | 25.4 | - | - | - |
CS | CS2.5x12.7 | 0 | 2.5 | 12.7 | - | - | - |
CS | CS2.5x25.4 | 0 | 2.5 | 25.4 | - | - | - |
CS | CS2.8x19.1 | 0 | 2.8 | 19.1 | M3 | - | - |
CS | CS2.8x25.4 | 0 | 2.8 | 25.4 | M3 | - | - |
CS | CS3.2x12.7 | 0 | 3.2 | 12.7 | - | - | - |
CS | CS3.2x25.4 | 0 | 3.2 | 25.4 | - | - | - |
CS | CS3.5x12.7 | 0 | 3.5 | 12.7 | - | - | - |
CS | CS3.5x25.4 | 0 | 3.5 | 25.4 | - | - | - |
CS | CS3.8x19.1 | 0 | 3.8 | 19.1 | M4 | - | - |
CS | CS3.8x25.4 | 0 | 3.8 | 25.4 | M4 | - | - |
CS | CS4x12.7 | 0 | 4 | 12.7 | M4 | - | - |
CS | CS4x25.4 | 0 | 4 | 25.4 | M4 | - | - |
CS | CS4x38.1 | 0 | 4 | 38.1 | M4 | - | - |
CS | CS4.4x12.7 | 0 | 4.4 | 12.7 | - | 3/16" | - |
CS | CS4.4x25.4 | 0 | 4.4 | 25.4 | - | 3/16" | - |
CS | CS4.4x38.1 | 0 | 4.4 | 38.1 | - | 3/16" | - |
CS | CS4.6x25.4 | 0 | 4.6 | 25.4 | - | 3/16" | - |
CS | CS4.8x12.7 | 0 | 4.8 | 12.7 | M5 | - | - |
CS | CS4.8x25.4 | 0 | 4.8 | 25.4 | M5 | - | - |
CS | CS5.5x25.4 | 0 | 5.5 | 25.4 | - | - | - |
CS | CS5.7x12.7 | 0 | 5.7 | 12.7 | M6 | - | - |
CS | CS5.7x25.4 | 0 | 5.7 | 25.4 | M6 | - | - |
CS | CS5.7x38.1 | 0 | 5.7 | 38.1 | M6 | - | - |
CS | CS5.9x12.7 | 0 | 5.9 | 12.7 | M6 | - | - |
CS | CS5.9x25.4 | 0 | 5.9 | 25.4 | M6 | - | - |
CS | CS5.9x38.1 | 0 | 5.9 | 38.1 | M6 | - | - |
CS | CS6.4x25.4 | 0 | 6.4 | 25.4 | - | - | - |
CS | CS6.4x38.1 | 0 | 6.4 | 38.1 | - | - | - |
CS | CS7.1x12.7 | 0 | 7.1 | 12.7 | - | 5/16" | - |
CS | CS7.1x25.4 | 0 | 7.1 | 25.4 | - | 5/16" | - |
CS | CS7.5x38.1 | 0 | 7.5 | 38.1 | M8 | 5/16" | - |
CS | CS7.9x25.4 | 0 | 7.9 | 25.4 | M8 | - | - |
CS | CS7.9x38.1 | 0 | 7.9 | 38.1 | M8 | - | - |
CS | CS8.7x25.4 | 0 | 8.7 | 25.4 | M8 | - | - |
CS | CS9x38.1 | 0 | 9 | 38.1 | - | - | - |
CS | CS9.5x12.7 | 0 | 9.5 | 12.7 | M10 | - | |
CS | CS9.5x19.1 | 0 | 9.5 | 19.1 | M10 | - | |
CS | CS9.5x25.4 | 0 | 9.5 | 25.4 | M10 | - | |
CS | CS9.5x38.1 | 0 | 9.5 | 38.1 | M10 | - | |
CS | CS10.3x25.4 | 0 | 10.3 | 25.4 | - | - | - |
CS | CS11.1x25.4 | 0 | 11.1 | 25.4 | - | 7/16" | - |
CS | CS11.6x25.4 | 0 | 11.6 | 25.4 | - | - | - |
CS | CS11.6x38.1 | 0 | 11.6 | 38.1 | M12 | - | - |
CS | CS11.9x25.4 | 0 | 11.9 | 25.4 | M12 | 1/2" | - |
CS | CS12.2x38.1 | 0 | 12.2 | 38.1 | - | 1/2" | - |
CS | CS12.7x38.1 | 0 | 12.7 | 38.1 | - | 1/2" | 1/4" |
CS | CS12.7x76.2 | 0 | 12.7 | 76.2 | - | 1/2" | 1/4" |
CS | CS12.7x101.6 | 0 | 12.7 | 101.6 | - | - | 1/4" |
CS | CS13.6x38.1 | 0 | 13.6 | 38.1 | M14 | - | - |
CS | CS13.6x76.2 | 0 | 13.6 | 76.2 | M14 | - | - |
CS | CS14.3x16.7 | 0 | 14.3 | 16.7 | M15 | - | - |
CS | CS14.3x27.9 | 0 | 14.3 | 27.9 | M15 | - | - |
CS | CS14.3x38.1 | 0 | 14.3 | 38.1 | M15 | - | - |
CS | CS15.2x38.1 | 0 | 15.2 | 38.1 | - | - | - |
CS | CS15.9x31.8 | 0 | 15.9 | 31.8 | M17 | 5/8" | 3/8" |
CS | CS15.9x38.1 | 0 | 15.9 | 38.1 | M17 | 5/8" | 3/8" |
CS | CS15.9x57.2 | 0 | 15.9 | 57.2 | M17 | 5/8" | 3/8" |
CS | CS17.5x15.9 | 0 | 17.5 | 15.9 | - | - | - |
CS | CS17.5x38.1 | 0 | 17.5 | 38.1 | - | - | - |
CS | CS17.5x44.5 | 0 | 17.5 | 44.5 | - | - | - |
CS | CS17.5x63.5 | 0 | 17.5 | 63.5 | - | - | - |
CS | CS18.5x38.1 | 0 | 18.5 | 38.1 | - | - | - |
CS | CS18.5x109.9 | 0 | 18.5 | 109.9 | - | - | - |
CS | CS19.1x38.1 | 0 | 19.1 | 38.1 | M20 | 3/4" | - |
CS | CS19.1x48.9 | 0 | 19.1 | 48.9 | M20 | 3/4" | - |
CS | CS19.1x88.9 | 0 | 19.1 | 88.9 | M20 | 3/4" | - |
CS | CS19.1x109.2 | 0 | 19.1 | 109.2 | M20 | 3/4" | - |
CS | CS20.6x25.4 | 0 | 20.6 | 25.4 | M22 | 7/8" | 1/2" |
CS | CS20.6x38.1 | 0 | 20.6 | 38.1 | M22 | 7/8" | 1/2" |
CS | CS21.5x72.2 | 0 | 21.5 | 72.2 | M22 | 7/8" | - |
CS | CS22.2x38.1 | 0 | 22.2 | 38.1 | - | - | - |
CS | CS23.8x38.1 | 0 | 23.8 | 38.1 | M24 | - | - |
CS | CS24.6x101.6 | 0 | 24.6 | 101.6 | - | - | - |
CS | CS25.4x50.8 | 0 | 25.4 | 50.8 | M27 | 1" | - |
CS | CS27.5x76.2 | 0 | 27.5 | 76.2 | - | - | - |
CS | CS28.6x38.1 | 0 | 28.6 | 38.1 | M30 | - | - |
CS | CS30.1x59 | 0 | 30.1 | 59 | - | - | - |
CS | CS31.8x38.1 | 0 | 31.8 | 38.1 | M33 | 1,1/4" | 1" |
CS | CS38.1x44.5 | 0 | 38.1 | 44.5 | - | 1,1/2" | - |
CS | CS41.3x50.8 | 0 | 41.3 | 50.8 | - | - | 1,1/4" |
CS | CS44.5x50.8 | 0 | 44.5 | 50.8 | - | 1,3/4" | - |
CS | CS47.6x50.8 | 0 | 47.6 | 50.8 | - | - | 1,1/2" |
CS | CS50.8x50.8 | 0 | 50.8 | 50.8 | - | - | - |
CS | CS53.5x50.8 | 0 | 53.5 | 50.8 | - | - | - |
